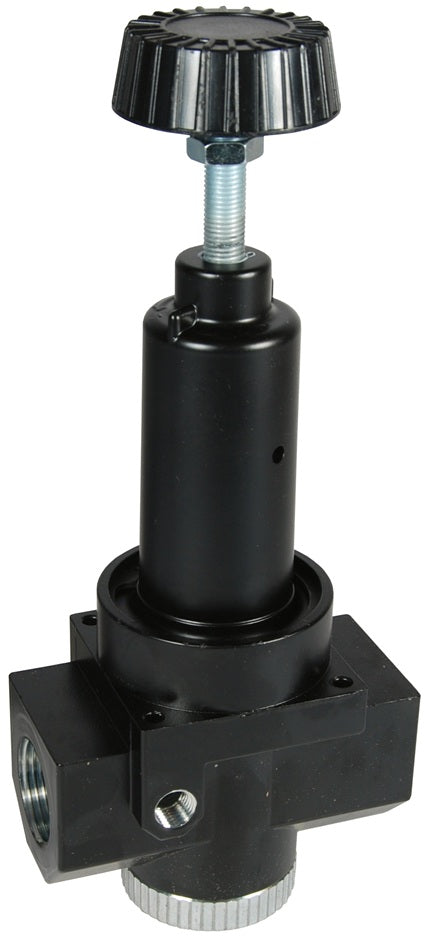

R30-08RH Wilkerson by Dixon Valve | R30-Series | High Pressure High Flow Regulator | 1" Size | 500 SCFM | without Gauge | 0-180 PSI Adjusting Range

Save $21.86

$258.90

$258.90 - $258.90

$258.90

$237.04

$237.04 - $237.04

$237.04

Dixon Valve
Wilkerson | R30-Series | High Pressure High Flow Regulators

0-180 PSI adjusting range.

Quantity

Specifications for Variant SKU: R30-08RH Dixon
Brand:	Wilkerson
Series:	R30-Series

Features:
Self-relieving standard. Piston operated. Can be installed with the adjusting knob in any position. To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise. Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports. Models supplied without gauge use a GC240 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C) SCFM ratings at 100 PSIG inlet pressure
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R30-06RHG	R30-06RH	3/4"	481 SCFM
R30-08RHG	R30-08RH	1"	500 SCFM
