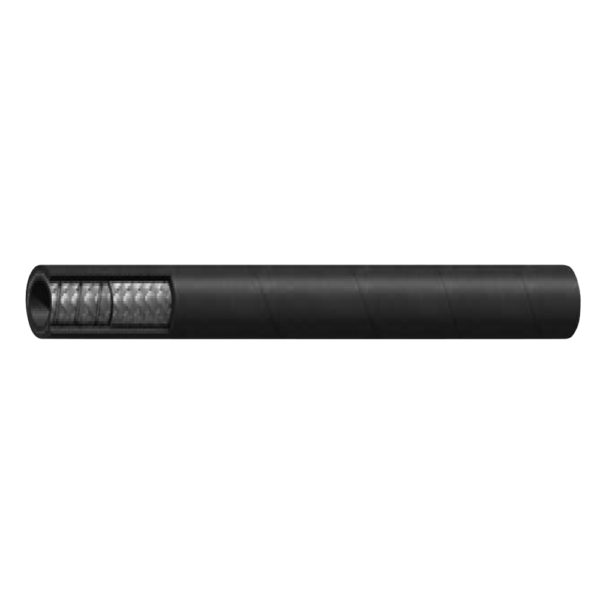

R4-16 by Kurt Hydraulics | SAE 100R4 | Suction Hose | 100' Reel Length

Save $77.83

$700.50

$700.50 - $700.50

$700.50

$622.67

$622.67 - $622.67

$622.67

by Kurt Hydraulics
SAE 100 R4 Suction Hose

Kurt Fittings and Hose should only be used together.

Package Quantity: 100 Feet

Quantity

Specifications for Variant SKU: R4-16 Kurt \| 100 \|
Dash Size:	-16
Internal Diameter:	1in
Outer Diameter:	1.48in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

Part Number	Hose I.D. (In)	Hose O.D. (In	Min. Bend (In)	Min. Burst (PSI)	Rated W.P. (PSI)	Weight (Lbs/Ft)
R4-12	3/4"	1.320"	5.000"	1,200	300	0.46
R4-16	1.000"	1.480"	6.000"	1,000	250	0.56
R4-20	1-1/4"	1.770"	8.000"	800	200	0.78
R4-24	1-1/2"	2.050"	10.000"	600	150	1.00
R4-32	2.000"	2.100"	12.000"	400	100	1.23

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
