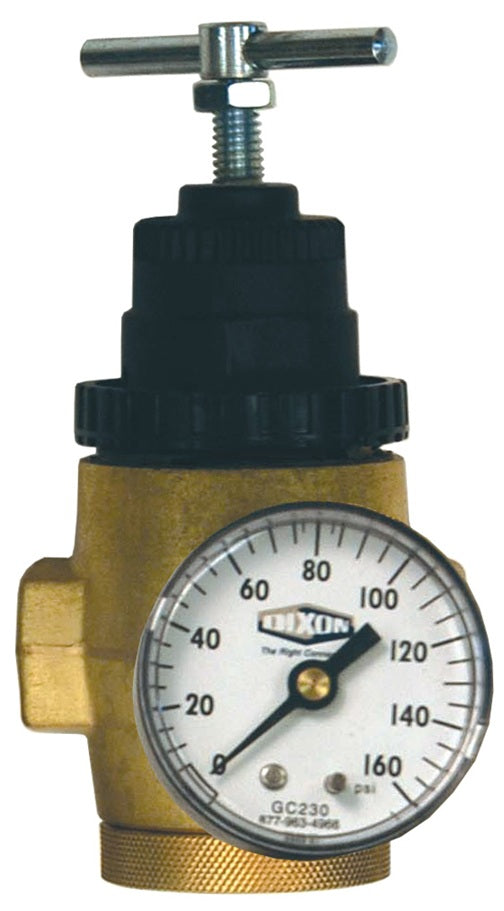

R43-301RG by Dixon Valve | R43 Series 1 | Water Pressure Regulator | 3/8" Port Size | 5 GPM | with Gauge | 5-125 PSI Pressure Range

R43-301RG by Dixon Valve | R43 Series 1 | Water Pressure Regulator | 3/8" Port Size | 5 GPM | with Gauge | 5-125 PSI Pressure Range

Save $26.72 Save $26.72
$355.89
$355.89 - $355.89
$355.89
$329.17
$329.17 - $329.17
$329.17

Dixon Valve
R43 Series 1 | Water Pressure Regulator

Used in water systems to reduce and maintain pressure at a nearly constant level despite changes in the inlet pressure and changes in downstream flow requirements.

Pressure range: 5-125 PSI
Specifications for Variant SKU: R43-301RG Dixon
Series: R43 Series 1
Features:
  • T-handle adjustment.
  • Brass body and aluminum bonnet.
  • Non-relieving type.
  • Gauge port is full-flow and can be used as an outlet port.
  • Supplied with GC230 gauge.
  • Food grade elastomers.
Specifications:
  • Pressure range: 5-125 PSI
  • Inlet pressure: 400 PSI
  • Temperature Range:
    • Water Service: 35° to 200°F (2°C to 93°C)
    • Air Service: -30° to 200°F (-34°C to 93°C)
  • Flow ratings given at 150 PSIG inlet pressure.
Dimensions:
With Gauge
Part Number 		Port Size Flow (GPM)
R43-201RG 1/4" 5 GPM
R43-301RG 3/8" 5 GPM
R43-406RG 1/2" 10 GPM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
