R518-5x5 Couplamatic R5 Series Coupling - Inverted Male - Straight - 1/4" Hose ID - 1/2x20 Thread Size

R518-5x5 by Couplamatic | R5 Series Coupling | 1/4" Hose ID x 1/2x20 Thread Size Inverted Male | Straight | Trivalent Zinc Plating | Pack of 10

Save $9.57 Save $9.57
$86.15
$86.15 - $86.15
$86.15
$76.58
$76.58 - $76.58
$76.58

Couplamatic Systems Inc.
R5 Series - Inverted Male - Straight

Package Quantity: 10 EA

Specifications for Variant SKU: R518-5x5 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male Inverted Flare, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

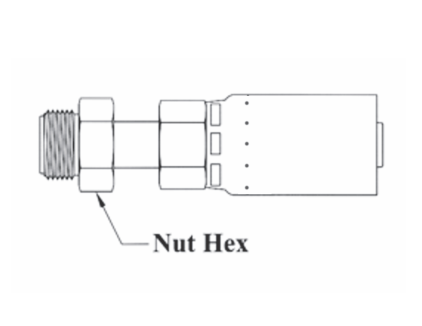

Part Number Hose ID Thread Size Tube OD Nut Hex
R518-4x4 3/16" 7/16x24" 1/4" 7/16"
R518-5x5 1/4" 1/2x20" 5/16" 1/2"
R518-6x6 5/16" 5/8x18" 3/8" 5/8"
R518-8x8 13/32" 3/4x18" 1/2" 3/4"
