R531-4X4 Couplamatic R5 Series Coupling - O-Ring Face Seal (ORF) - 45° Female Swivel - 3/16" Hose ID - 9/16x18 Thread Size

R531-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 10

Save $10.94 Save $10.94
$98.44
$98.44 - $98.44
$98.44
$87.50
$87.50 - $87.50
$87.50

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - 45° Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R531-4X4 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 3/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

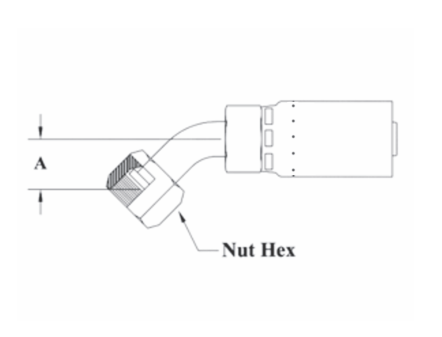

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
R531-4X4 3/16" 9/16x18 1/4" .41" 11/16"
R531-6X6 5/16" 11/16x16 3/8" .43" 13/16"
R531-8X8 13/32" 13/16x16 1/2" .60" 15/16"
