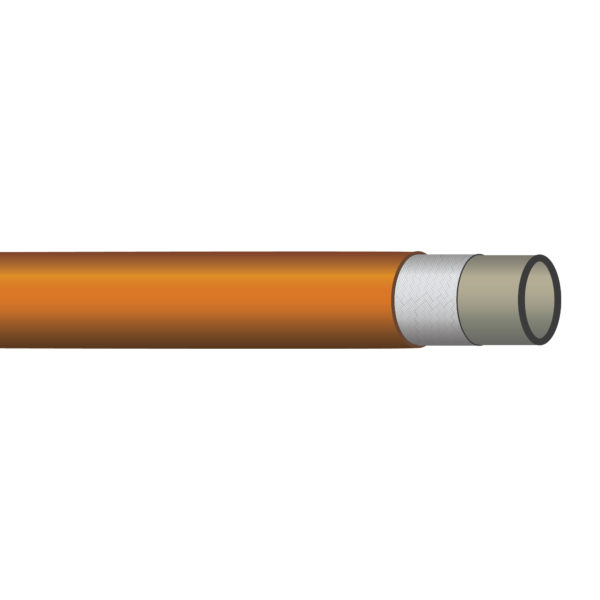

R7-05-NC by Kurt Hydraulics | R7-NC Series | 0.3125in ID x 0.585in ID | 2500 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Orange | 300ft Reel

Save $63.00

$567.00

$567.00 - $567.00

$567.00

$504.00

$504.00 - $504.00

$504.00

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 300 Feet

Quantity

Specifications for Variant SKU: R7-05-NC Kurt \| 300 \|
Series:	R7-NC Series
Hose Color(s):	Orange
Dash Size:	-05
Internal Diameter:	0.3125in
Outer Diameter:	0.585in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7

Recommended for: Medium pressure hydraulic oil lines to non-conductive standards
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R7-02-NC	1/8	0.31	3,000	12,000	1.0
R7-03-NC	3/16	0.41	3,000	12,000	2.0
R7-04-NC	1/4	0.49	3,000	12,000	2.5
R7-05-NC	5/16	0.59	2,500	10,000	3.0
R7-06-NC	3/8	0.65	2,250	9,000	3.5
R7-08-NC	1/2	0.81	2,000	8,000	5.5
R7-12-NC	3/4	1.1	1,250	5,000	7.0
R7-16-NC	1	1.38	1,000	4,000	12.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
