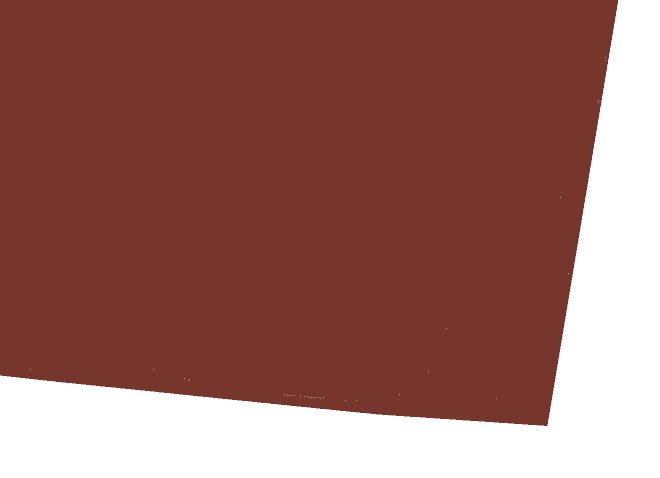

R75-04x48x36 by Kuriyama | Commercial Grade SBR Sheet Rubber Plate Finish | 70 Duro Hardness | Shore Durometer A | Red | 1/8" x 48" | 36ft Roll

R75-04x48x36 by Kuriyama | Commercial Grade SBR Sheet Rubber Plate Finish | 70 Duro Hardness | Shore Durometer A | Red | 1/8" x 48" | 36ft Roll

Save $11.03 Save $11.03
$395.73
$395.73 - $395.73
$395.73
$384.70
$384.70 - $384.70
$384.70

Kuriyama Industrial Sheet Rubber - Red SBR Sheet Plate & Fabric Finish

Package Quantity: 36 FT

Specifications for Variant SKU: R75-04X48X36 Kuriyama | 36 |

SPECIFICATIONS

Styles: R75: 70 Duro hardness (Shore Durometer A) RF75: 70 Duro hardness (Shore Durometer A) Polymer: Styrene-Butadiene
Common Name: Red Rubber Sheet ISO/ASTM Designation: SBR Meets D1330 Grade 1
Features & Properties:
  • Good physical properties.
  • (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)
  • Acid Resistance
  • Alkali Resistance
  • Compression Set Resilience
  • Gas Permeability Resistance
  • Gas Resistance
  • Good physical properties
  • Heat Aging Abrasion Resistance
  • Oil Resistance
  • Tear Flame Resistance
  • Weathering Ozone Resistance
Part Number Gauge x Width in. ASTM Specification (SI units) Temp. Range Durometer Tensile Strength (PSI) Elongation (%) Finish Avg. Length (Linear Ft. /Roll) Weight (Lbs/Roll)
R75-02x36x67 1/16" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 67ft 106 lbs
R75-04x36x36 1/8" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 36ft 114 lbs
R75-04x36x50 1/8" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 50ft 158 lbs
R75-06x36x36 3/16" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 36ft 171 lbs
R75-08x36x18 1/4" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 18ft 114 lbs
R75-08x36x25 1/4" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 25ft 158 lbs
R75-08x36x50 1/4" x 36" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 50ft 316 lbs
R75-02x48x67 1/16" x 48" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 67ft 141 lbs
R75-04x48x36 1/8" x 48" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 36ft 152 lbs
R75-04x48x50 1/8" x 48" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 50ft 211 lbs
R75-08x48x18 1/4" x 48" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 18ft 152 lbs
R75-08x48x50 1/4" x 48" D 2000 M1AA 705 -22 deg. F to +158 deg. F 65 - 75 600 PSI 200% Plate 50ft 422 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
