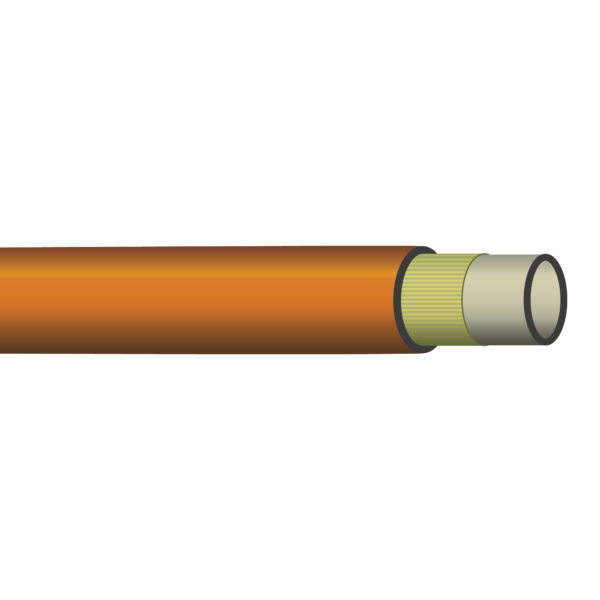

R8-05-NC by Kurt Hydraulics | R8-NC Series | 0.3125in ID x 0.585in ID | 4200 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Orange | 300ft Reel

Save $608.00

$1,520.00

$1,520.00 - $1,520.00

$1,520.00

$912.00

$912.00 - $912.00

$912.00

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 300 Feet

Specifications for Variant SKU: R8-05-NC Kurt \| 300 \|
Series:	R8-NC Series
Hose Color(s):	Orange
Dash Size:	-05
Internal Diameter:	0.3125in
Outer Diameter:	0.585in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8

Recommended for: High pressure non-conductive hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R8-03-NC	3/16	0.41	5,000	20,000	2.0
R8-04-NC	1/4	0.49	5,000	20,000	2.5
R8-06-NC	3/8	0.65	4,000	16,000	3.5
R8-08-NC	1/2	0.76	3,500	14,000	5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
