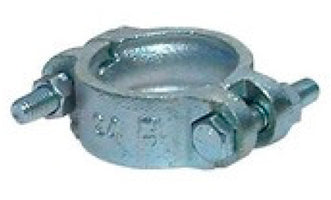

R88DB-12-DP Midland Heavy Duty Buchanan Double Bolt Clamp - R88 Series - Size: 1-1/8" - Clamp Range: 1-1/8" to 1-1/4" - Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt

R88DB-12-DP by Midland | Heavy Duty Buchanan Double Bolt Clamp | R88 Series | Size: 1-1/8" | Clamp Range: 1-1/8" to 1-1/4" | Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt

Save $0.58 Save $0.58
$5.19
$5.19 - $5.19
$5.19
$4.61
$4.61 - $4.61
$4.61

Midland Industries
Buchanan Heavy Duty Double Bolt Clamp - Zinc Plated Ductile Iron Band / Zinc Plated Carbon Steel Bolt
Specifications for Variant SKU: R88DB-12-DP Midland
Material(s): Zinc Plated Ductile Iron, Zinc Plated Carbon Steel
Minimum Clamp I.D.: 1.125
Maximum Clamp I.D.: 1.25
Features:
  • R88 Series
  • Rugged, heavy duty two bolt clamps without saddles
  • Zinc plated ductile iron clamp
  • Zinc plated carbon steel bolt and nuts
  • Import
Part Number Size Clamp Range Max Torque
R88DB-12-DP 1-1-8" 1-1/8" - 1-1/4" 15
R88DB-16-DP 1.3/8" 1-3/8" - 1-1/2" 20
R88DB-20-DP 1-5/8" 1-5/8" - 1-3/4" 25
R88DB-24-DP 2" 2" - 2-1/8" 25
R88DB-32-DP 2-1/4" 2-1/4" - 2-3/8" 30
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
