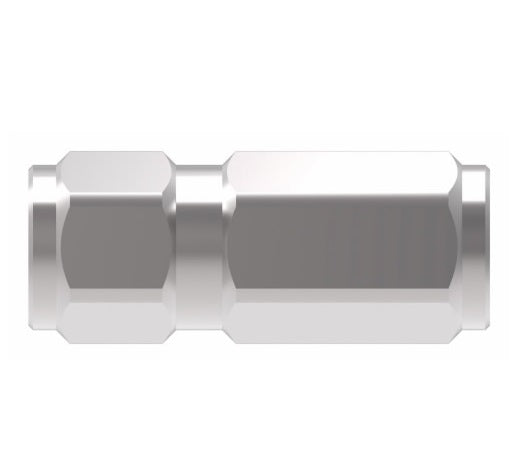

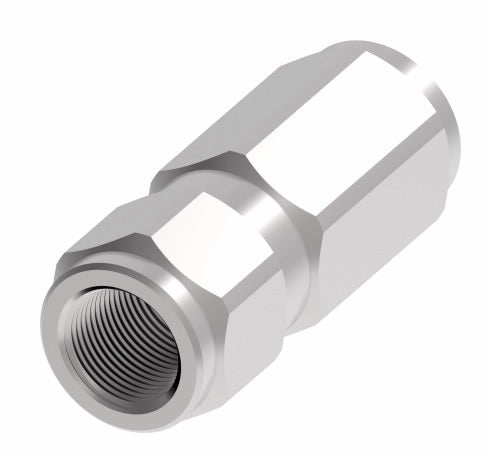

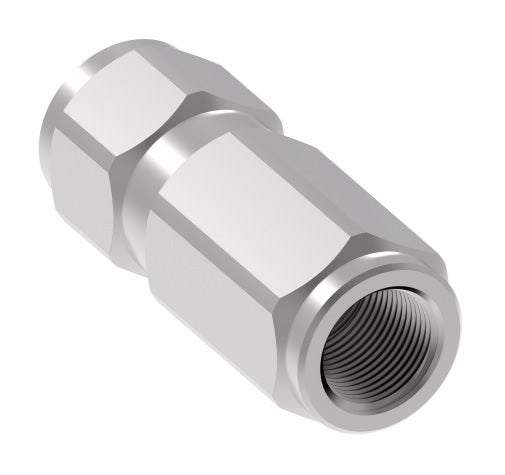

RA0421000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/4" Female NPTF x 1/4" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel

RA0421000 Hansen® by Danfoss | Quick Disconnect Check Valve | R4000 Series | 1/4" Female NPTF x 1/4" Body Size | Cracking Pressure: 0.5 bar (7.25 psi) | NBR Seal | Steel

$41.64 - $41.64

$41.64

$41.64 - $41.64

$41.64

Hansen® by Danfoss

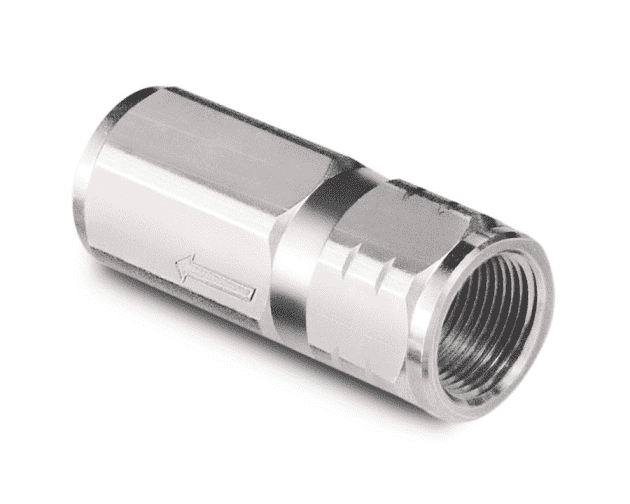

R4000 Series | Check Valve

The Danfoss Hansen R4000 Series steel check valves are designed for multipurpose hydraulic applications to either allow flow of fluid in one direction only or limit the line's internal pressure to the cracking pressure.

Standard cracking pressures are 0.5 and 1 bar (7.25 and 14.5 psi).

Quantity

Specifications for Variant SKU: RA0421000 Danfoss
Brand:	Hansen
Series:	R4000 Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Operating Guidelines:	The Danfoss R4000 series is designed to handle liquids. Should applications involving gases (but not unstable gases) be considered, the user should certify that sonic frequencies will not exceed 1 Hz (one cycle per second).
Applications & Markets:	All Industries Agriculture Construction Fluid Transfer Lines
Materials:	Standard body material: Zinc-plated steel. Standard seal materials: Nitrile (NBR): -4°F +212°F/-20°C +100°C FKM (Fluorocarbon): -4°F +392°F/-20°C +200°C also available.
European Pressure Equipment Directive:	Check valves with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Check valves with nominal diameters greater than 25 mm are designed and manufactured with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases. Our series R4000 check valves must not be used as safety devices (as per PED 2014/68/EU).

**For reference only, based on Danfoss recommended temperatures.

Body Size	Nominal Flow Diameter	Max. Operating Pressure**				Rated Flow*
		Non hazardous liquids & gases in Group 2		Hazardous liquids & gases in Group 1		Rated Flow*
		bar	psi	bar	psi	L/min	gpm
1/8"	3.8mm	700 bar	10,150 psi	700 bar	10,150 psi	4.5 L/min	1.19 gpm
1/4"	5.7mm	700 bar	10,150 psi	700 bar	10,150 psi	14.2 L/min	3.75 gpm
3/8"	7.6mm	700 bar	10,150 psi	700 bar	10,150 psi	22 L/min	5.81 gpm
1/2"	10.3mm	500 bar	7,250 psi	500 bar	7,250 psi	32 L/min	8.45 gpm
3/4"	14.2mm	500 bar	7,250 psi	500 bar	7,250 psi	72 L/min	19 gpm
1"	16.5mm	500 bar	7,250 psi	500 bar	7,250 psi	117 L/min	30.9 gpm
1-1/4"	20.5mm	300 bar	4,350 psi	300 bar	4,350 psi	188 L/min	49.66 gpm
1-1/2"	25.8mm	300 bar	4,350 psi	38 bar	550 psi	232 L/min	61.29 gpm
2"	34.7mm	300 bar	4,350 psi	28 bar	405 psi	393 L/min	103.81 gpm

*Indicated values refer to a 1 bar/14.5 psi pressure drop.
**Group 1 = Hazardous media / Group 2 = Other media


Cracking Pressure 0.5 bar (7.25 psi)
Part Number		Size	Thread NPTF	Dimensions		Rated Pressure
NBR	FKM	Size	Thread NPTF	A	Hex	psi	bar
RA0421000	-	1/4"	1/4-18 Female NPTF	1.97"	0.75"	10,150 psi	700 bar
RA0422000	-	3/8"	3/8-18" Female NPTF	2.36"	0.91"	10,150 psi	700 bar
RA0423000	-	1/2"	1/2-14 Female NPTF	2.76"	1.06"	7,250 psi	500 bar
RA0424000	-	3/4"	3/4-14 Female NPTF	3.39"	1.38"	7,250 psi	500 bar
RA0425000	-	1"	1-11-1/2 Female NPTF	3.94"	1.62"	7,250 psi	500 bar
