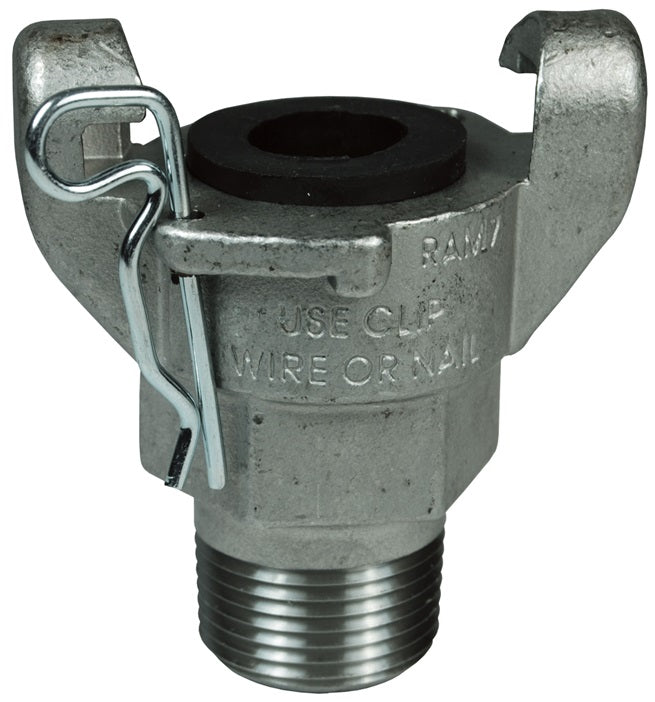

RAM2 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Threaded End | Chicago Style x 1/2" Male NPT | 316 Stainless Steel

Name: RAM2 Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Threaded End | Chicago Style x 1/2" Male NPT | 316 Stainless Steel
Brand: Dixon
SKU: RAM2 Dixon
Price: 42.51 USD
Availability: InStock

Save $3.47

$45.98

$45.98 - $45.98

$45.98

$42.51

$42.51 - $42.51

$42.51

Dixon Valve
Air King® Universal Coupling | 2-Lug Hose End | Chicago Style x Male NPT

Air King is for air and water service only.

Quantity

Specifications for Variant SKU: RAM2 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 2-Lug Chicago
Material(s):	316 Stainless Steel
Seal Material(s):	Rubber

Features:
Can be used with Air King ferrules Supplied with safety clip Supplied with rubber washer, part # AWR4
Specifications:
Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D. Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
Never use any Air King coupling for steam service! Air King is for air and water service ONLY. The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.

Iron Part Number	Brass Part Number	316 Stainless Steel Part Number	Size
AMB1	ABB1	-	1/4"
AMB	ABB	RAMB	3/8"
AM2	-	RAM2	1/2"
AM7	-	RAM7	3/4"
AM12	-	RAM12	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
