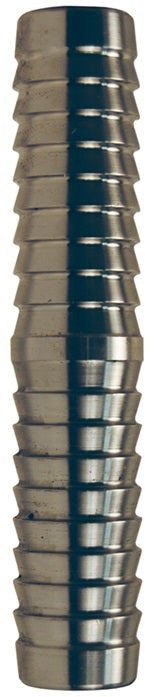

RDM46 by Dixon Valve | Hose Mender/Splicer | 4" Hose ID x 4" Hose ID | 316 Stainless Steel

Name: RDM46 by Dixon Valve | Hose Mender/Splicer | 4" Hose ID x 4" Hose ID | 316 Stainless Steel
Brand: Dixon
SKU: RDM46 Dixon
Price: 167.36 USD
Availability: InStock

Save $15.43

$182.79

$182.79 - $182.79

$182.79

$167.36

$167.36 - $167.36

$167.36

Dixon Valve
Hose Mender/Splicer | Hose Barb x Hose Barb

Quantity

Specifications for Variant SKU: RDM46 Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in Hose Barb, 4in Hose Barb, Some Ends Match
Material(s):	316 Stainless Steel

Safety Notes:
Menders are not for compressible products such as air, nitrogen or steam. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Zinc Plated Steel Part Number	316 Stainless Steel Part Number	Size
DMA	RDMA	1/4"
DMB	RDMB	3/8"
DM1	RDM1	1/2"
DM5	-	5/8"
DM6	RDM6	3/4"
DM11	RDM11	1"
DM16	RDM16	1-1/4"
DM18	-	1-3/8"
DM21	RDM21	1-1/2"
DMXL21*	-	1-1/2"
DM26	RDM26	2"
DMXL26*	-	2"
DM31	-	2-1/2"
DM36	RDM36	3"
DM46	RDM46	4"
DM51	-	5"
DM66	-	6"
DM86	-	8"
DM100	-	10"
DM120	-	12"

* XL series has extra long shank

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
