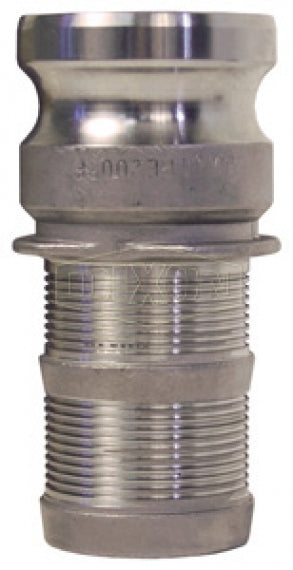

RE200PF by Dixon Valve | Boss-Lock Cam & Groove Adapter | Type E | 2" Adapter x 2" Phono Finish Hose Shank | 316 Stainless Steel

RE200PF by Dixon Valve | Boss-Lock Cam & Groove Adapter | Type E | 2" Adapter x 2" Phono Finish Hose Shank | 316 Stainless Steel

Save $78.77 Save $78.77
$196.93
$196.93 - $196.93
$196.93
$118.16
$118.16 - $118.16
$118.16

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type E | Adapter x Phono Finish Shank

The shank design on these fittings was developed specifically for chemical transport hoses having Cross-linked Polyethylene (XLPE) or Ultra High Molecular Weight Polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps.
Specifications for Variant SKU: RE200PF Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 2in Male Cam & Groove, 2in Hose Barb
Material(s): 316 Stainless Steel
Special Properties: Phono Finish
Features:
  • For best results we recommend the use of 3/4" wide band clamps.
  • In testing tank transport hoses from a wide variety of manufacturers, the Boss-Lock-PF fitting showed significant improvement in hose coupling retention over the conventional cam and groove shank design.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon..
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
RE200PF 2" 250 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
