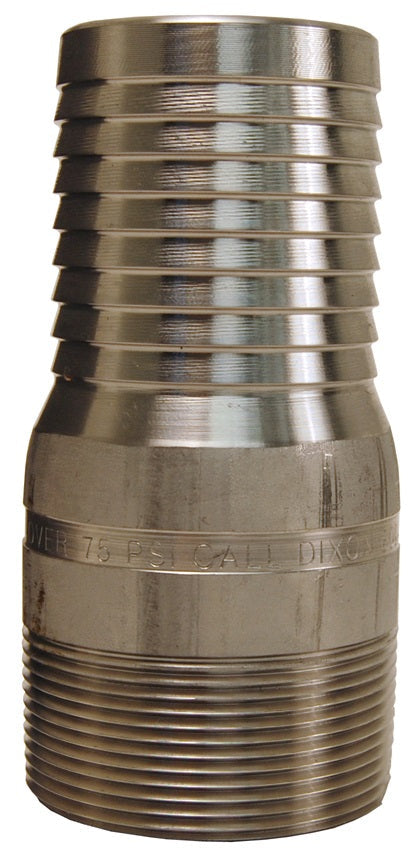

RST5 by Dixon Valve | King Combination Nipple | No Knurl | 3/4" Male NPT x 3/4" Hose ID | 316 Stainless Steel

RST5 by Dixon Valve | King Combination Nipple | No Knurl | 3/4" Male NPT x 3/4" Hose ID | 316 Stainless Steel

Save $1.38 Save $1.38
$16.39
$16.39 - $16.39
$16.39
$15.01
$15.01 - $15.01
$15.01

Dixon Valve
King Combination Nipple | No Knurl | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.
Specifications for Variant SKU: RST5 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Hose Barb
Material(s): 316 Stainless Steel
Safety Notes:
  • King Combination Nipples are not recommended for steam.
  • 1-1/4" and above are not for compressible products such as air or nitrogen.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Unplated Steel
Part Number		 Plated Steel
Part Number		 Brass
Part Number		 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Hastelloy®
Part Number		 Size
- - - - RST1 - 1/2"
- - - - RST5 - 3/4"
- - - - RST10 - 1"
- - BST15 AST15 RST15 - 1-1/4"
- - BST20 AST20 RST20 - 1-1/2"
- - BST25 AST25 RST25 HST25 2"
ST30 STC30 BST30 AST30 RST30 - 2-1/2"
ST35 STC35 BST35 AST35 RST35 - 3"
ST40 STC40 BST40 AST40 RST40 - 4"
ST50 STC50 - AST50 RST50 - 5"
ST60 STC60 - AST60 RST60 - 6"
ST80 STC80 - - RST80 - 8"
ST100 STC100 - - - - 10"
ST120 STC120 - - - - 12"
