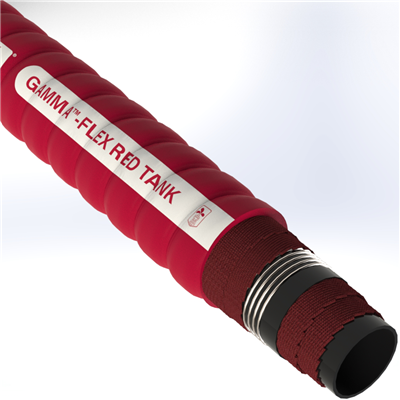

RTA15F1-4.0 by Texcel | GAMMA™-FLEX RED TANK Series | Corrugated Tank Truck Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red

RTA15F1-4.0 by Texcel | GAMMA™-FLEX RED TANK Series | Corrugated Tank Truck Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red

$28.77 - $4,794.00
$28.77
$25.57
$25.57 - $4,261.33
$25.57

GAMMA™ by Texcel
FLEX RED TANK Series | Red Corrugated Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: RTA15F1-4.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-FLEX RED TANK Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.56in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Red cover for easy identification. Exceptional flexibility (one-to-one ratio) for ease of handling. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Red, Neoprene (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-FLEX RED TANK - FLEXIBLE RED TANK TRUCK HOSE 150 PSI W.P. Features: Exceptional flexibility
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
RTA15F1-1.5 1-1/2" 1-63/64" 150 psi 29 1.5" 0.80 lbs
RTA15F1-2.0 2" 2-30/64" 150 psi 29 2" 1.05 lbs
RTA15F1-3.0 3" 3-32/64" 150 psi 29 3" 1.64 lbs
RTA15F1-4.0 4" 4-36/64" 150 psi 29 4" 2.58 lbs
