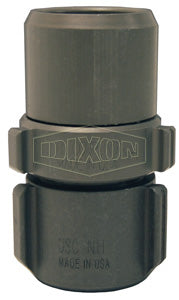

S16168 Dixon Aluminum Expansion Ring Coupling for Single Jacket Fire Hose - Rocker Lug - Complete Set - 1-1/2" NPSH Thread - 1-11/16" Bowl

S16168 Dixon Aluminum Expansion Ring Coupling for Single Jacket Fire Hose - Rocker Lug - Complete Set - 1-1/2" NPSH Thread - 1-11/16" Bowl

Save $4.75 Save $4.75
$42.78
$42.78 - $42.78
$42.78
$38.03
$38.03 - $38.03
$38.03

Dixon Fire Fittings
Fire Fitting Wrench - Expansion Ring Coupling for Single Jacket Fire Hose - Rocker Lug

For use with single jacket hose.
Specifications for Variant SKU: S16168 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPSH, 1-1/2in Internal Expansion Hose End
Material(s): Aluminum
Features:
  • 3 rocker lugs on male and female.
  • Hardcoated finish.
  • All couplings come complete with expansion rings, swivel and tail washers.
  • Special tooling is required to attach these couplings to hose.
Part Number Description Material Size Bowl Weight
(Lbs.)
S10125 Complete Coupling Aluminum 1" NPSH 1-1/4" 0.4240
S16175 Complete Coupling Aluminum 1-1/2" NPSH 1-3/4" 0.7385
S16168 Complete Coupling Aluminum 1-1/2" NPSH 1-11/16" 0.9400
S16181 Complete Coupling Aluminum 1-1/2" NPSH 1-13/16" 0.7600
S20225 Complete Coupling Aluminum 2" NPSH 2-1/4" 1.5600
S26281 Complete Coupling Aluminum 2-1/2" NPSH 2-13/16" 1.9580
S16168F Complete Coupling Aluminum 1-1/2" NST (NH) 1-11/16" 0.9600
S16175F Complete Coupling Aluminum 1-1/2" NST (NH) 1-3/4" 0.9600
S16181F Complete Coupling Aluminum 1-1/2" NST (NH) 1-13/16" 0.8600
S26268F Complete Coupling Aluminum 2-1/2" NST (NH) 2-11/16" 1.7800
S26281F Complete Coupling Aluminum 2-1/2" NST (NH) 2-13/16" 2.0400
MS16168T Single Male Coupling Aluminum 1-1/2" MNPT 1-11/16" 0.3690
MS16175T Single Male Coupling Aluminum 1-1/2" MNPT 1-3/4" 0.4300
MS20225T Single Male Coupling Aluminum 2" MNPT 2-1/4" 0.7240
MS26268T Single Male Coupling Aluminum 2-1/2" MNPT 2-11/16" 0.9000
RS15175 Complete Coupling Brass 1-1/2" NPSH 1-3/4" 2.2300
RS15181 Complete Coupling Brass 1-1/2" NPSH 1-13/16" 2.2000
RS25281 Complete Coupling Brass 2-1/2" NPSH 2-13/16" 5.5000
RS15175F Complete Coupling Brass 1-1/2" NST (NH) 1-3/4" 2.2300
RS15181F Complete Coupling Brass 1-1/2" NST (NH) 1-13/16" 2.2000
RS25281F Complete Coupling Brass 2-1/2" NST (NH) 2-13/16" 5.5000
