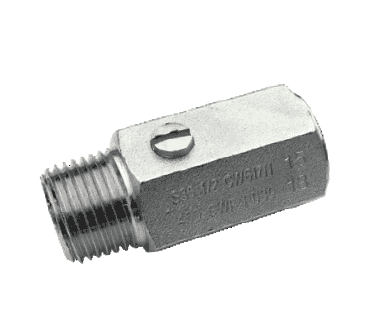

S35AZ3 by RuB Inc. | High Pressure Mini Ball Valve | 1/8" Male NPT x 1/8" Female NPT | with Screw Driver Slot | Brass | Pack of 25

Save $24.92

$224.25

$224.25 - $224.25

$224.25

$199.33

$199.33 - $199.33

$199.33

RuB Inc. - Mini Ball Valves - S35 Series - High Pressure - Male NPT x Female NPT - with Screw Driver Slot

Package Quantity: 25 Units

Quantity

Specifications for Variant SKU: S35AZ3 RuB Inc \| 25 \|
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPT, 1/8in Female NPT
Material(s):	Brass
Seal Material(s):	FPM

Quality:
Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle/stem clearly shows ball position Silicone-free lubricant on all seals Each valve is seal tested for maximum safety Chrome plated brass ball for longer life
Body:
One piece drawn sand blasted brass body with extremely compact design Finest brass according to EN 12164 specification Patent n. 7011-B/89
Stem:
Blowout-proof brass stem with FPM O-ring
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Handle:
Reinforced nylon back wedge handle Handle removable with valve in service WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
Maximum working pressure: 450 PSI non-shock cold working pressure -4°F/+250°F +250°F screw driver version and metal wedge handle WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
Aluminum body Additional connection options ISO 7/1 BSPT taper threads Dezincification resistant brass CW602N
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S35AZ3	1/8"	1/8"	0.236"	0.354"	1.712"	0.905"	0.826"
S35BZ3	1/4"	1/4"	0.314"	0.472"	1.712"	0.905"	0.826"
S35CZ3	3/8"	3/8"	0.314"	0.472"	1.712"	0.905"	0.826"
S35DZ3	1/2"	1/2"	0.393"	0.610"	2.106"	1.102"	0.984"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
