S6014RIZ ZSi-Foster | Strut Mounted Beta Clamp | Standard Series with Rubber Insert | For 1/2" Pipe | Polypropylene/Steel

S6014RIZ by ZSi-Foster | Strut Mounted Beta Clamp | Standard Series with Rubber Insert | For 1/2" Pipe | Polypropylene/Steel

Save $1.61 Save $1.61
$14.50
$14.50 - $14.50
$14.50
$12.89
$12.89 - $12.89
$12.89

ZSI-Foster
Beta Hydraulic Clamps - Standard Series with Rubber Insert - Strut Mount - Polypropylene/Steel

One cushion block provides flexible size range of cushioning.

Smooth bore core can be used on hose, or for vibration reduction

Maintains center line when used in groups.
Specifications for Variant SKU: S6014RIZ ZSI-Foster
Series: Standard Series with Rubber Insert
Maximum Clamp I.D.: 0.5
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Cushion: Polypropylene
  • Components: Steel
Installation:

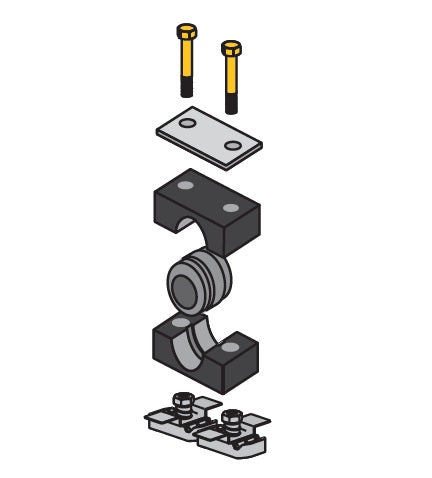

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
1 Each Rubber Insert
2 Each Strut Nuts
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size
S4008RIZ S6014RIZ 1/2"
S4010RIZ - 5/8"
S4012RIZ - 3/4"
- - 7/8"
S6016RIZ - 1"
SM4012RIZ (Metric) 12mm
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
