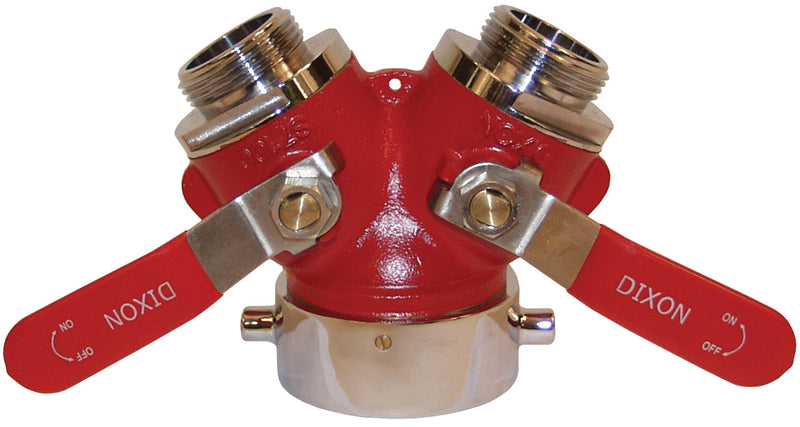

S7100 Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - Female 2-1/2" NST(NH) Swivel Inlet x 1-1/2" Male NST(NH) Outlets (Two)

S7100 Dixon Cast Brass Full Flow 1/4 Turn Ball Type Hose Valve - Female 2-1/2" NST(NH) Swivel Inlet x 1-1/2" Male NST(NH) Outlets (Two)

Save $69.75 Save $69.75
$400.35
$400.35 - $400.35
$400.35
$330.60
$330.60 - $330.60
$330.60

Dixon Fire Fittings
Full Flow 1/4 Turn Ball Type Hose Valves - Cast Brass

Recommended for charged pre-connected hose lines. For use with water only.
Specifications for Variant SKU: S7100 Dixon
Shape (Orientation): Y
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s): Brass
Features:
  • Pin lug swivel.
  • Maximum operating pressure: 175 PSI (water only) at 70°F (21°C).
Part Number Inlet
Female Swivel		 (2) Outlets
Male		 Weight
(Lbs.)
S7100-15S 1-1/2" NPSH 1-1/2" NPSH 8.5000
S7100-15 1-1/2" NST (NH) 1-1/2" NST (NH) 8.2000
S7100 2-1/2" NST (NH) 1-1/2" NST (NH) 9.0700
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
