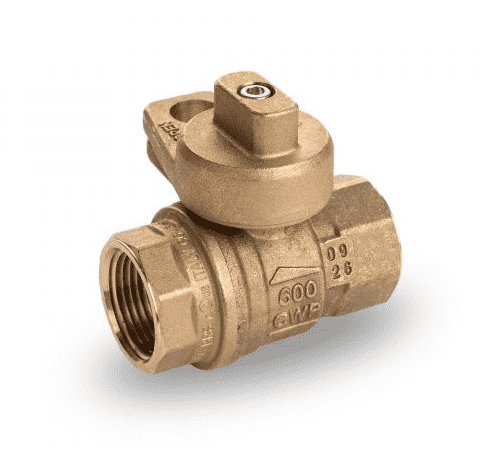

S80H41 by RuB Inc. | Gas Service Ball Valve | Gas Meter Cock | 1-1/2" Female NPT x 1-1/2" Female NPT | with Unplated Body | Brass | Pack of 6

Save $42.57

$383.13

$383.13 - $383.13

$383.13

$340.56

$340.56 - $340.56

$340.56

RuB Inc. - Gas Service Ball Valve - S.80 Series - Gas Meter Cock - Female NPT x Female NPT - with Unplated Body

Package Quantity: 6 Units

Quantity

Specifications for Variant SKU: S80H41 RuB Inc \| 6 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Cover clearly shows ball position Silicone-free lubricant on all seals Handle stops on body to avoid stresses at stem Chrome plated brass ball for longer life
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Special design to combine newest technologies in valve and traditional gas-cock requirements Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Hot forged brass tamper proof lockwing
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Complaint (Russia) Underwriters Laboratories (United States & Canada) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	M	N	CH
S80E41	3/4"	3/4"	0.787"	0.669"	2.519"	1.259"	1.142"	1.801"	0.492"	0.449"	1.220"
S80F41	1"	1"	0.984"	0.826"	3.188"	1.594"	1.142"	1.958"	0.492"	0.449"	1.574"
S80G41	1-1/4"	1-1/4"	1.259"	0.905"	3.661"	1.830"	1.208"	2.519"	0.472"	0.563"	1.929"
S80H41	1-1/2"	1-1/2"	1.574"	0.905"	4.015"	2.007"	1.208"	2.756"	0.472"	0.563"	2.125"
S80I41	2"	2"	1.968"	1.043"	4.763"	2.381"	1.208"	3.031"	0.472"	0.563"	2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
