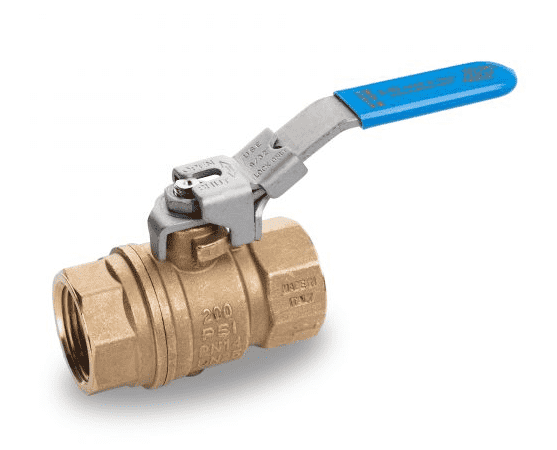

S93D41 by RuB Inc. | Full Port Exhaust Ball Valve | 1/2" Female NPT x 1/2" Female NPT | with Blue Lockable Handle | Brass | Pack of 8

Save $16.96

$152.64

$152.64 - $152.64

$152.64

$135.68

$135.68 - $135.68

$135.68

RuB Inc. - Speciality Ball Valves - S93 Series - Female NPT x Female NPT Full Port Exhaust with Blue Lockable Handle

Package Quantity: 8 Units

Quantity

Specifications for Variant SKU: S93D41 RuB Inc \| 8 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air or assemble mufflers for noise control
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Molybdenum filled PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection Handle removable with valve in service WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
Maximum working pressure 200 PSI (CWP) +15°F/+210°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball Custom design T-handle
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) OSHA Compliant NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	CH	N
S93B41	1/4"	1/4"	0.314"	0.472"	1.771"	0.885"	3.759"	1.811"	0.787"	10-32 UNF
S93C41	3/8"	3/8"	0.393"	0.472"	1.771"	0.885"	3.759"	1.811"	0.787"
S93D41	1/2"	1/2"	0.590"	0.610"	2.322"	1.161"	3.759"	2.008"	0.984"
S93E41	3/4"	3/4"	0.787"	0.669"	2.519"	1.259"	4.574"	2.323"	1.220"
S93F41	1"	1"	0.984"	0.826"	3.188"	1.594"	4.574"	2.480"	1.574"
S93G41	1-1/4"	1-1/4"	1.260"	0.906"	3.661"	1.831"	6.161"	3.031"	1.929"	1/4" NPT
S93H41	1-1/2"	1-1/2"	1.575"	0.906"	4.016"	2.008"	6.161"	3.268"	2.126"
S93I41	2"	2"	1.969"	1.043"	4.764"	2.382"	6.161"	3.543"	2.697"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
