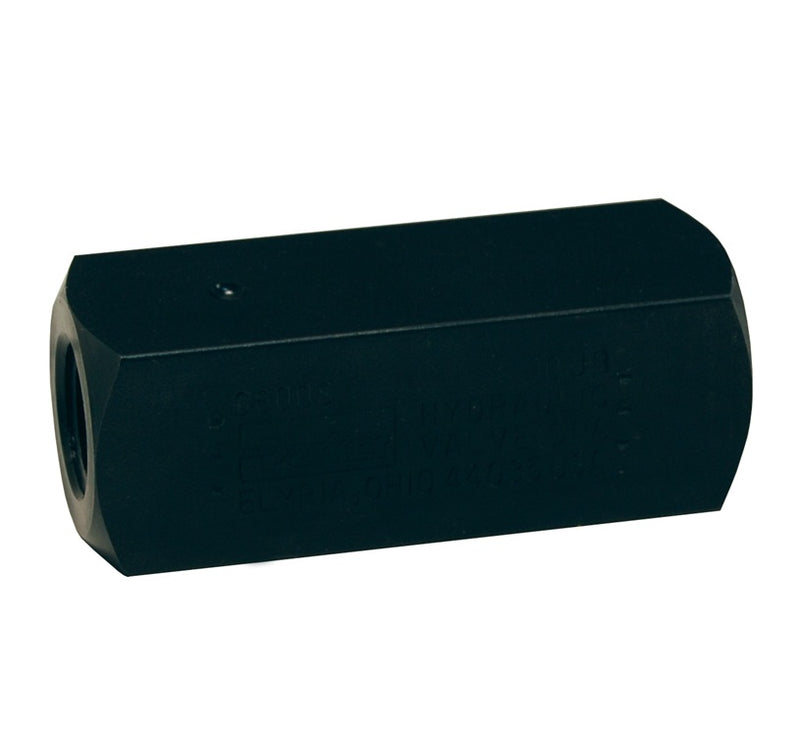

SCV200 by Dixon Valve | Check Valve | Series C | 1/8" Female NPT x 1/8" Female NPT | Steel

SCV200 by Dixon Valve | Check Valve | Series C | 1/8" Female NPT x 1/8" Female NPT | Steel

Save $4.86 Save $4.86
$57.70
$57.70 - $57.70
$57.70
$52.84
$52.84 - $52.84
$52.84

Dixon Valve & Coupling
Check Valve | Series C

Provides free flow in one direction and dependable shutoff in the opposite direction.
Specifications for Variant SKU: SCV200 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Steel
Specifications:
  • Maximum operating pressure: 2000 PSI at ambient temperature 70°F (21°C)
  • Cracking pressure: 5 PSI
Part Number Material Female NPT x Female NPT Free Flow
GPM		 Maximum Operating
at 70°F (21°C)
PSI
BCV200 Brass 1/8" x 1/8" 3 GPM 2000 PSI
BCV400 Brass 1/4" x 1/4" 5 GPM 2000 PSI
BCV600 Brass 3/8" x 3/8" 8 GPM 2000 PSI
BCV800 Brass 1/2" x 1/2" 15 GPM 2000 PSI

SCV200 Steel 1/8" x 1/8" 3 GPM 5000 PSI
SCV400 Steel 1/4" x 1/4" 5 GPM 5000 PSI
SCV600 Steel 3/8" x 3/8" 8 GPM 5000 PSI
SCV800 Steel 1/2" x 1/2" 15 GPM 5000 PSI
