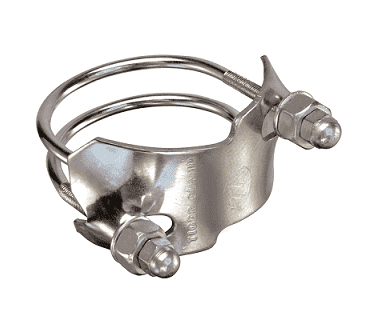

SDBC-SS-4 by Kuriyama | Spiral Double Bolt Clamp For Counterclockwise Spiral Hoses | Size: 4" | 304 Stainless Steel

SDBC-SS-4 by Kuriyama | Spiral Double Bolt Clamp For Counterclockwise Spiral Hoses | Size: 4" | 304 Stainless Steel

$40.04 - $40.04
$40.04
$40.55
$40.55 - $40.55
$40.55

Kuriyama Couplings™ - Tiger Clamp™ Spiral Double Bolt Clamps - For Counterclockwise Spiral Hoses - 304 Stainless Steel

Specifications for Variant SKU: SDBC-SS-4 Kuriyama
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 4
Applications:
  • For Counterclockwise Spiral Hoses
  • Designed to fit most Tigerflex PVC Suction Hoses
  • For use with Kuriyama Hoses
Features:
    N/A
Materials:
  • 304 Stainless Steel
Part Number Size (in.) Torque (ft. lbs.) Weight (Lbs.)
SDBC-SS-1.5 1-1/2" 6 0.20 lbs
SDBC-SS-2 2" 6 0.40 lbs
SDBC-3 3" 8 0.73 lbs
SDBC-SS-4 4" 24 1.12 lbs
SDBC-SS-6 6" 30 2.20 lbs
SDBC-SS-8 8" 30 3.04 lbs
SDBC-SS-10 10" 30 3.81 lbs
SDBC-SS-12 12" 30 4.55 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
