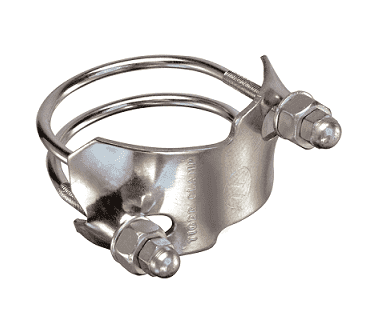

SDBC-SS-8 by Kuriyama | Spiral Double Bolt Clamp For Counterclockwise Spiral Hoses | Size: 8" | 304 Stainless Steel

Name: SDBC-SS-8 by Kuriyama | Spiral Double Bolt Clamp For Counterclockwise Spiral Hoses | Size: 8" | 304 Stainless Steel
Brand: Kuriyama
SKU: SDBC-SS-8 Kuriyama
Price: 79.95 USD
Availability: InStock

$68.06 - $68.06

$68.06

$79.95

$79.95 - $79.95

$79.95

Kuriyama Couplings™ - Tiger Clamp™ Spiral Double Bolt Clamps - For Counterclockwise Spiral Hoses - 304 Stainless Steel

Quantity

Specifications for Variant SKU: SDBC-SS-8 Kuriyama
Material(s):	304 Stainless Steel
Maximum Clamp I.D.:	8

Applications:
For Counterclockwise Spiral Hoses Designed to fit most Tigerflex PVC Suction Hoses For use with Kuriyama Hoses
Features:
N/A
Materials:
304 Stainless Steel

Part Number	Size (in.)	Torque (ft. lbs.)	Weight (Lbs.)
SDBC-SS-1.5	1-1/2"	6	0.20 lbs
SDBC-SS-2	2"	6	0.40 lbs
SDBC-3	3"	8	0.73 lbs
SDBC-SS-4	4"	24	1.12 lbs
SDBC-SS-6	6"	30	2.20 lbs
SDBC-SS-8	8"	30	3.04 lbs
SDBC-SS-10	10"	30	3.81 lbs
SDBC-SS-12	12"	30	4.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
