SFKHD-12 Couplamatic GW Series Coupling - Extra Heavy Duty Split Flange Kits - 3/4" Flange Size - Complete Kit

SFKHD-12 by Couplamatic | GW Series Coupling | 3/4" Extra Heavy Duty Split Flange Size | Complete Kit

$46.52 - $46.52
$46.52
$49.62
$49.62 - $49.62
$49.62

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Split Flange Kits
Specifications for Variant SKU: SFKHD-12 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Caterpillar Flange
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

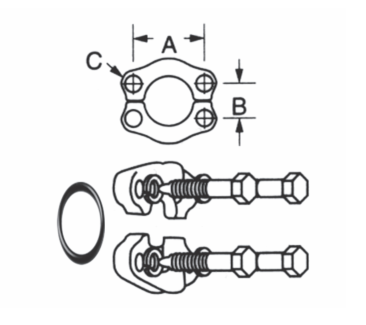

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFKHD-12 D12 3/4" 2.00" 0.94" 13/32"
SFKHD-16 D16 1" 2.25" 1.09" 15/32"
SFKHD-20 D20 1-1/4" 2.63" 1.25" 17/32"
