SFKHD-16 Couplamatic GW Series Coupling - Extra Heavy Duty Split Flange Kits - 1" Flange Size - Complete Kit

SFKHD-16 by Couplamatic | GW Series Coupling | 1" Flange Size | Complete Kit

Save $0.48 Save $0.48
$59.21
$59.21 - $59.21
$59.21
$58.73
$58.73 - $58.73
$58.73

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Split Flange Kits
Specifications for Variant SKU: SFKHD-16 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1in Caterpillar Flange
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

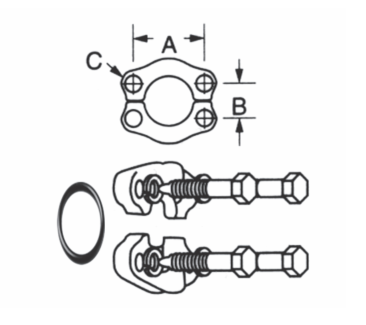

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFKHD-12 D12 3/4" 2.00" 0.94" 13/32"
SFKHD-16 D16 1" 2.25" 1.09" 15/32"
SFKHD-20 D20 1-1/4" 2.63" 1.25" 17/32"
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
