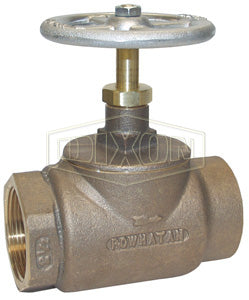

SGVF250 Dixon Cast Brass Straight Globe Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Outlet

SGVF250 Dixon Cast Brass Straight Globe Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Outlet

Save $44.89 Save $44.89
$524.97
$524.97 - $524.97
$524.97
$480.08
$480.08 - $480.08
$480.08

Dixon Fire Fittings
Straight Globe Valves - Cast Brass

Used with a fire hose rack assembly, or as a fire department outlet connection. Ideal for wet and combination systems.
Specifications for Variant SKU: SGVF250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Brass, Aluminum
Features:
  • Cast brass with an aluminum handwheel.
  • Working pressure: 300 PSI at 70°F (21°C)
Size A B C Closed D Open
1-1/2" 2-3/8" 4-3/4" 7-1/4" 8"
2-1/2" 3-9/32" 6-9/16" 7-3/8" 8-1/8"
Part Number NPT Inlet NPT Outlet Weight
(Lbs.)
SGV150F 1-1/2" Female NPT 1-1/2" Male NST (NH) 6.0000
SGV250F 2-1/2" Female NPT 2-1/2" Male NST (NH) 11.3600
SGVF150 1-1/2" Female NPT 1-1/2" Female NPT 6.0000
SGVF250 2-1/2" Female NPT 2-1/2" Female NPT 9.9000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
