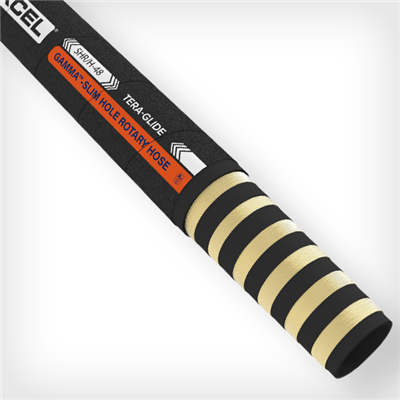

SH-SPH-3.0 by Texcel | GAMMA™ Series | Slim Hole Rotary Hose for drilling applications | 3" Hose ID | 4,000 PSI | Black

SH-SPH-3.0 by Texcel | GAMMA™ Series | Slim Hole Rotary Hose for drilling applications | 3" Hose ID | 4,000 PSI | Black

$96.10 - $8,008.50
$96.10
$85.42
$85.42 - $7,118.67
$85.42

GAMMA™ by Texcel
SLIM HOLE ROTARY HOSE Series | 4,000 PSI hose designed for drilling applications
Specifications for Variant SKU: SH-SPH-3.0-100 Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™ Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.56in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber
Technical Data:
Tube: Black, NBR Cover: Black, abrasion, ozone and hydrocarbon resistant synthetic rubber
Reinforcement: Multiple layers of spiraled high tensile steel wire Maximum Length: 100 ft.
Safety Factor: 2.5:1 Operating Temperature: -40 F to +250 F
Branding: GAMMA™ - SLIM HOLE ROTARY HOSE 2 ½” (63.5mm) 4,000 PSI (276 bar) W.P. / 10,000 PSI (690 bar) B.P. 2.5:1 S.F.

SHR/H-40 TERA-GLIDE 2 ½” -40 DN65 2,500 PSI (170 BAR) W.P. / 10,000 PSI (690) B.P. 4:1 S.F./ MSHA IC-84/43		 Couplings: Use GMCO™ 9000 SERIES Couplings
Part Number Hose ID Hose OD Working Pressure (psi) Burst Pressure (psi) Bend Radius Lbs./Ft.
SH-SPH-2.5 2-1/2" 3-3/4" 4,000 psi 10,000 psi 26" 4.57 lbs/ft
SH-SPH-3.0 3" 3-3/4" 4,000 psi 10,000 psi 27" 4.93 lbs/ft
