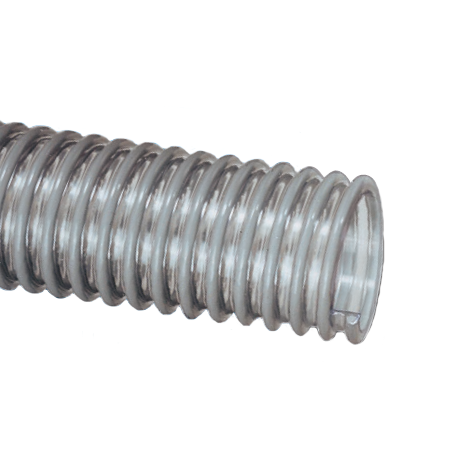

SH600X100 Kuriyama Tigerflex SH Series Standard Duty Low Temperature PVC Liquid Suction Hose - 6" - 100ft

SH600X100 Tigerflex by Kuriyama | SH Series | Standard Duty Low Temperature Liquid Suction Hose | 6" ID | PVC | 100ft Length

Save $234.81 Save $234.81
$2,348.14
$2,348.14 - $2,348.14
$2,348.14
$2,113.33
$2,113.33 - $2,113.33
$2,113.33

Kuriyama Tigerflex SH™ Series Standard Duty Low Temperature PVC Liquid Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: SH600X100 Kuriyama | 100 |
Brand: Tigerflex
Series: SH Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.69in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Drain lines, Dust collection, Gold dredging, Water suction - standard duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS
Other Features:
  • Transparent Construction - "See-the-flow." Allows for visual conformation of material flow.
  • "Cold-Flex" Materials (SH Series; Sizes 2-1/2" - 8") - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
SH250X100 2-1/2" 63.5mm 9.97" 75.5mm 30 PSI 9 PSI 24 in. Hg 18 in. Hg 3" 100ft 0.43 lbs
SH400X100 4" 101.6mm 5.52" 114.8mm 25 PSI 7 PSI 18 in. Hg 14 in. Hg 6" 100ft 1.06 lbs
SH500X100 5" 127.0mm 5.57" 141.5mm 20 PSI 6 PSI 16 in. Hg 12 in. Hg 10" 100ft 1.47 lbs
SH600X100 6" 153.4mm 6.69" 169.9mm 20 PSI 6 PSI 14 in. Hg 10 in. Hg 12" 100ft 2.27 lbs
SH800X60 8" 204.8mm 8.86" 225.0mm 10 PSI 3 PSI 12 in. Hg 8 in. Hg 24" 60ft 3.34 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
