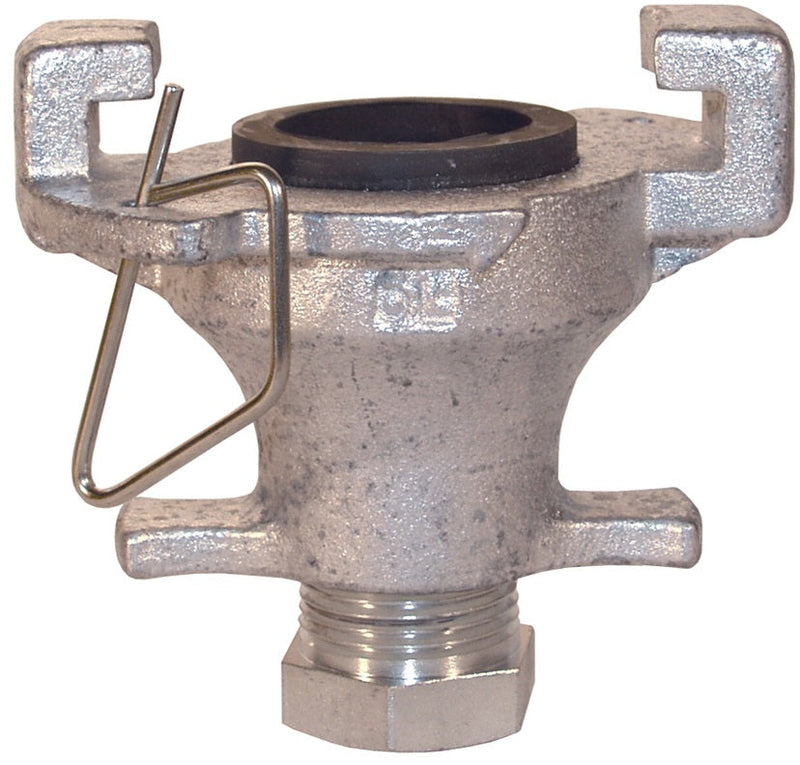

SL01 Sure-Lock® by Dixon Valve | Pneumatic Fitting | Blank End | Medium Head | Chicago Style | 1-1/2" to 2" Size | Iron

$32.77 - $32.77

$32.77

$32.77 - $32.77

$32.77

Dixon Valve
Sure-Lock® Coupling | Blank End | Chicago Style

Coupling for air only, commonly used in construction and mining; excels in services where ease, economy, safety, and speed are paramount.

Quantity

Specifications for Variant SKU: SL01 Dixon
Brand:	Sure-Lock
Shape (Orientation):	No Orientation
Ends Configuration:	2-Lug Chicago
Material(s):	Iron

Features:
Pressure-activated gasket allows for easy coupling (less than 15 lbs. of force is required to connect the coupling gaskets seal upon introduction of line pressure).
Construction:
Body: SG iron AS1831 400-250-12. Bellows seal: natural rubber. Safety pin is supplied with each coupling.
Specifications:
Working pressure: 200 PSI at ambient temperature 70°F (21°C)
Safety Notes:
Safety pin is supplied with each coupling and is required as a safety precaution. Pressure rating is based on use with band clamps.

Part Number	Head	Size
SL00	Small	1/2" to 1"
SL01	Medium (Medium blank end comes with 1" NPT pipe plug)	1-1/2" to 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
