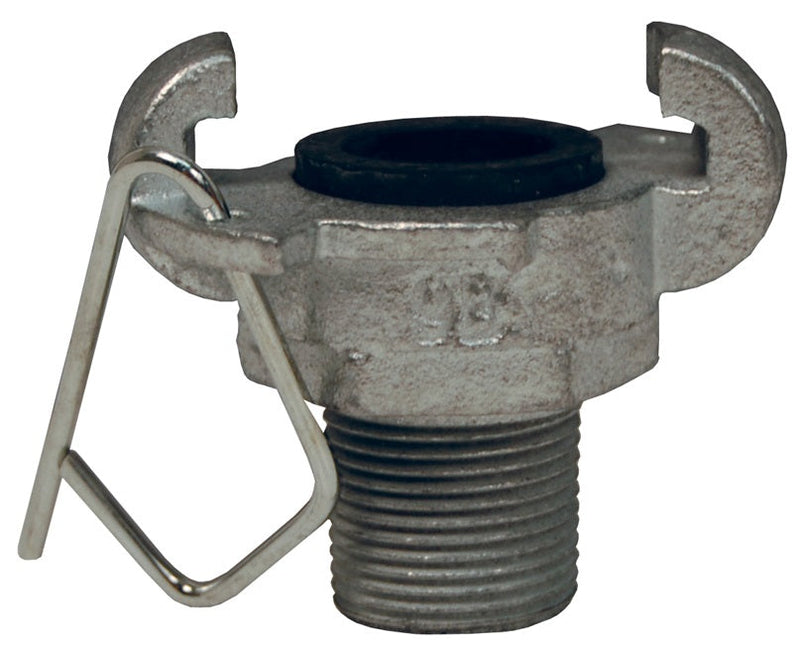

SL150M Sure-Lock® by Dixon Valve | Pneumatic Fitting | Medium Head Coupling | Chicago Style x 1-1/2" Male NPT | Iron

SL150M Sure-Lock® by Dixon Valve | Pneumatic Fitting | Medium Head Coupling | Chicago Style x 1-1/2" Male NPT | Iron

$26.75 - $26.75
$26.75
$26.75 - $26.75
$26.75

Dixon Valve
Sure-Lock® Coupling | Chicago Style x Male NPT

Coupling for air only, commonly used in construction and mining; excels in services where ease, economy, safety, and speed are paramount.
Specifications for Variant SKU: SL150M Dixon
Brand: Sure-Lock
Shape (Orientation): Straight
Ends Configuration: 2-Lug Chicago, 1-1/2in Male NPT
Material(s): Iron
Features:
  • Pressure-activated gasket allows for easy coupling (less than 15 lbs. of force is required to connect the coupling gaskets seal upon introduction of line pressure).
Construction:
  • Body: SG iron AS1831 400-250-12.
  • Bellows seal: natural rubber.
  • Safety pin is supplied with each coupling.
Specifications:
  • Working pressure: 200 PSI at ambient temperature 70°F (21°C)
Safety Notes:
  • Safety pin is supplied with each coupling and is required as a safety precaution.
  • Pressure rating is based on use with band clamps.
Part Number Head Size
SL038M Small 3/8"
SL050M Small 1/2"
SL075M Small 3/4"
SL100M Small 1"
SL150M Medium 1-1/2"
SL200M Medium 2"
