SLT10050 Dixon Brass Sprinkler Line Tester - 1" Female NPT Inlet - 1" Male NPSH Outlet

SLT10050 Dixon Brass Sprinkler Line Tester - 1" Female NPT Inlet x 1" Male NPSH Outlet

Save $9.81 Save $9.81
$88.25
$88.25 - $88.25
$88.25
$78.44
$78.44 - $78.44
$78.44

Dixon Fire Fittings

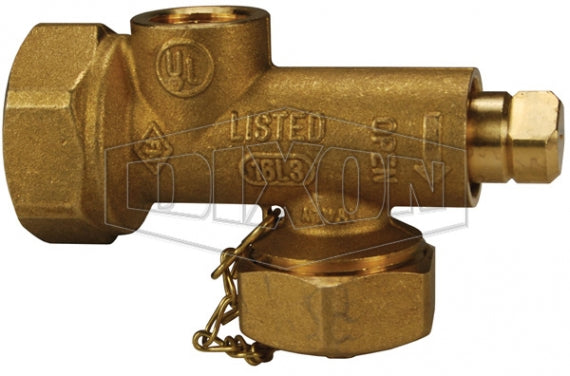

Sprinkler Line Tester - Brass

Installs on the last sprinkler head on system branch lines and controls water flow for flushing or testing the system.

UL Listed, FM approved
Specifications for Variant SKU: SLT10050 Dixon
Shape (Orientation): Multi-Directional
Ends Configuration: 1in Female NPT, 1in Male NPSH
Material(s): Brass
Applications:
  • For installing the last sprinkler head on system branch lines, controls water flow for flushing or testing of the system. When the wet pipe sprinkler system operates, the water flow in the pipes is at a relatively low velocity. Friction loss increases with the age of the sprinkler piping, up to 100 percent after 15 years. The accumulation of sediment and foreign objects in sprinkler systems can be prevented by flushing the supply mains to the systems through the hydrants at least semiannually. The National Board of Fire Underwriters recommends that sprinkler branch line flow tests be conducted from the extremities of the branch lines (at the end of the sprinkler system) to determine obstructions in the lines and to clean them of sediments or foreign materials that may be carried into the system by the flow of water.
Features:
  • Outlet has cap and chain.
Part Number Size Weight
lbs.
SLT10050 1" Female NPT Inlet x 1" Male NPSH Outlet 0.8150
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
