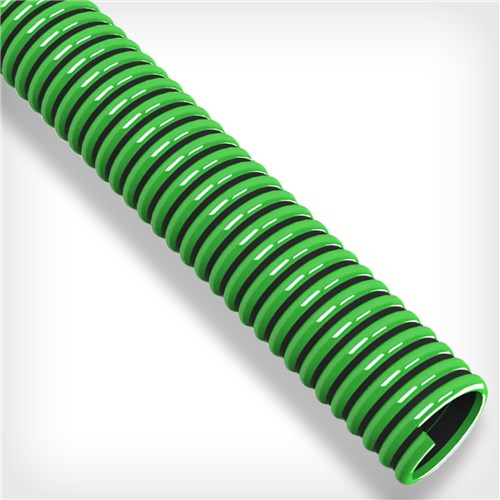

SP-DUTY-2.0-100 by Texcel | SIGMA-DUTY MAX™ Series | NBR Suction Hose | 2" Hose ID | 50 PSI | 29.8 in/Hg Vacuum Rated | Green

$5.88 - $490.50

$5.88

$5.23

$5.23 - $436.00

$5.23

Texcel
SIGMA-DUTY MAX™ Series | NBR Suction Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: SP-DUTY-2.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-DUTY MAX™ Series
Hose Color(s):	Green
Internal Diameter:	2in
Outer Diameter:	2.43in
Tubing Construction:	Nitrile/PVC Blend
Special Properties:	Outer Helix Protection

Technical Data:
Description:	Duty Max is a heavy-duty, all-weather, suction hose for use in liquid manure handling, septic and wastewater handling, water suction, and general oilfield applications. Please note that service life may vary based on media being conveyed and operating conditions. The PVC helix makes for increased toughness over rough surfaces and around corners making it the perfect product for harsh conditions.	Construction:	NBR/PVC tube with a PVC helix
Safety Factor:	3:1	Temperature:	-40°F to +140°F
Features:	Superior flexibility even at sub-zero temperatures Lightweight, with floating capabilities

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Color	Lbs./Ft.
SP-DUTY-1.5	1-1/2"	1.82"	50	29.8	3.0"	Green	0.44
SP-DUTY-2.0	2"	2.43"	50	29.8	5.0"	Green	0.74
SP-DUTY-BLUE-2.0	2"	2.43"	50	29.8	5.0"	Blue	0.74
SP-DUTY-YELLOW-2.0	2"	2.43"	50	29.8	5.0"	Yellow	0.74
SP-DUTY-3.0	3"	3.55"	43	29.8	7.0"	Green	1.21
SP-DUTY-BLUE-3.0	3"	3.55"	43	29.8	7.0"	Blue	1.21
SP-DUTY-YELLOW-3.0	3"	3.55"	43	29.8	7.0"	Yellow	1.21
SP-DUTY-4.0	4"	4.62"	38	29.8	11.0"	Green	1.95
SP-DUTY-YELLOW-4.0	4"	4.62"	38	29.8	11.0"	Yellow	1.95
SP-DUTY-BLUE-4.0	4"	4.62"	38	29.8	11.0"	Blue	1.95
SP-DUTY-6.0	6"	6.81"	23	29.8	20.0"	Green	3.23
