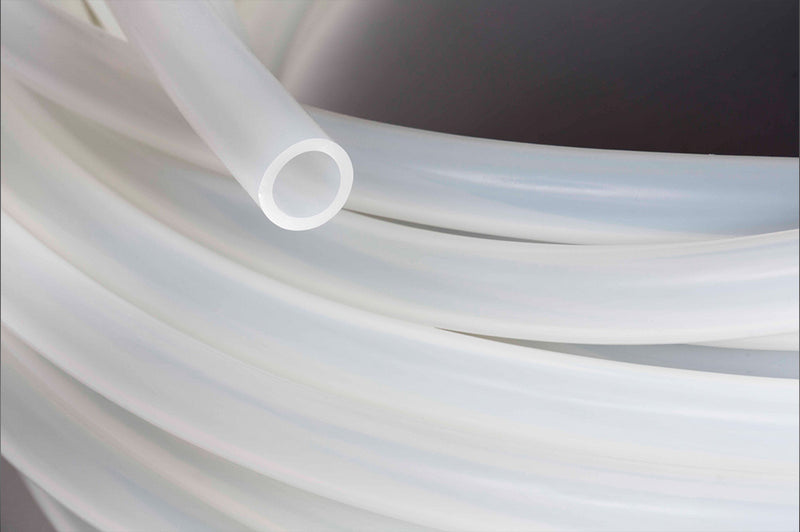

SPT50 - .437 X .563 Versilon™ Saint Gobain 7/16" ID x 9/16" OD x 1/16" Wall (SPT-50) - 500' Package Length - Sanitary Silicone Tubing

SPT50 - .437 X .563 Versilon™ Saint Gobain 7/16" ID x 9/16" OD x 1/16" Wall (SPT-50) - 500' Package Length - Sanitary Silicone Tubing

Save $312.59 Save $312.59
$3,125.92
$3,125.92 - $3,125.92
$3,125.92
$2,813.33
$2,813.33 - $2,813.33
$2,813.33

Saint Gobain - Versilon™ Sanitary Silicone Tubing - Formulation SPT-50

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 500 FT

Specifications for Variant SKU: SPT50 - .437 X .563 Saint Gobain | 500 |
Series: Versilon SPT-50
Hose Color(s): Clear/Semi-Clear
Application: Sterile Filling, Vaccine Manufacturing, Load Cell Production Filtration, Drug Delivery Systems, Media Processing, Cell Harvest SAE Rating: N/A
Other Ratings: N/A Tube: Silicone
Reinforcement: N/A Cover: N/A
Temperature Range: N/A Crimp Fittings: N/A
Reusable Fittings: N/A Specifications USP Class VI, European Pharmacopeia 3.1.9
Literature: Versilon™ Sanitary Silicone Tubing - Formulation SPT-50 (PDF)
Other Features:
  • Pharmaceutical grade
  • Excellentflexibility and bend radius
  • Minimal extractables
  • Tear resistant
  • Superior inner surface smoothness
  • Fully autoclavable and sterilizable
  • Imparts no taste or odors
  • Extremely stable over wide temperature ranges
  • Meets all USP Class VI and European Pharmacopeia 3.1.9 protocols
  • Excellentperistaltic pump life
  • Manufactured in a clean room environment
  • WARNING: Versilon™ Sanitary Silicone Tubing - Formulation SPT-50 is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Length
SPT50 - .031 X .094 1/32" 3/32" 1/32" 500ft
SPT50 - .063 X .125 1/16" 1/8" 1/32" 500ft
SPT50 - .063 X .188 1/16" 3/16" 1/16" 500ft
SPT50 - .094 X .156 3/32" 5/32" 1/32" 500ft
SPT50 - .094 X .219 3/32" 7/32" 1/16" 500ft
SPT50 - .125 X .188 1/8" 3/16" 1/32" 500ft
SPT50 - .125 X .250 1/8" 1/4" 1/16" 500ft
SPT50 - .156 X .219 5/32" 7/32" 1/32" 500ft
SPT50 - .187 X .250 3/16" 1/4" 1/32" 500ft
SPT50 - .187 X .313 3/16" 5/16" 1/16" 500ft
SPT50 - .250 X .313 1/4" 5/16" 1/32" 500ft
SPT50 - .250 X .375 1/4" 3/8" 1/16" 500ft
SPT50 - .250 X .438 1/4" 7/16" 3/32" 500ft
SPT50 - .250 X .500 1/4" 1/2" 1/8" 500ft
SPT50 - .312 X .438 5/16" 7/16" 1/16" 500ft
SPT50 - .312 X .500 5/16" 1/2" 3/32" 500ft
SPT50 - .375 X .500 3/8" 1/2" 1/16" 500ft
SPT50 - .375 X .563 3/8" 9/16" 3/32" 500ft
SPT50 - .375 X .625 3/8" 5/8" 1/8" 500ft
SPT50 - .437 X .563 7/16" 9/16" 1/16" 500ft
SPT50 - .437 X .625 7/16" 5/8" 3/32" 500ft
SPT50 - .500 X .625 1/2" 5/8" 1/16" 500ft
SPT50 - .500 X .688 1/2" 11/16" 3/32" 500ft
SPT50 - .500 X .750 1/2" 3/4" 1/8" 500ft
SPT50 - .625 X .813 5/8" 13/16" 3/32" 500ft
SPT50 - .625 X .875 5/8" 7/8" 1/8" 500ft
SPT50 - .750 X .100 3/4" 1.00" 1/8" 500ft
SPT50 - 1.00 X 1.25 1.00" 1-1/4" 1/8" 500ft
SPT50 - 1.25 X 1.50 1-1/4" 1-1/2" 1/8" 500ft
SPT50 - 1.50 X 2.00 1-1/2" 2.00" 1/4" 500ft
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
