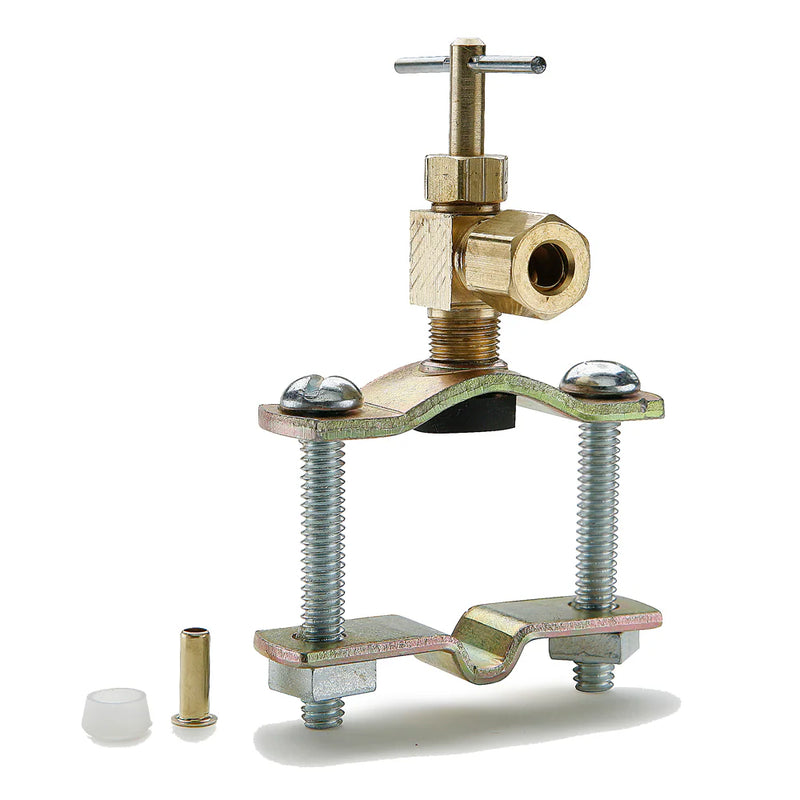

SPV104C-KIT by Parker | Self-Piercing Humidifier Valve Clamp Kit | 1/4" Tube Size x 1/8" Pipe Thread | Brass | Pack of 10

$220.80 - $220.80

$220.80

$240.80

$240.80 - $240.80

$240.80

by Parker Hannifin
Needle Valves:Humidifier Valve Clamp Kit HV104C-KIT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: SPV104C-KIT Parker \| 10 \|
Shape (Orientation):	No Orientation
Material(s):	Brass
Special Properties:	Valved

Specification:
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:	Extruded Brass Body & Stem Low Temperature Seal Metal-to-Metal Seal Pin Handle Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:	Compressed air, water, industrial fluids Other fluids: please contact division.
Temperature Range:	-40° to +175° F (-40° to +79.4° C) Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C) NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:	Up to 150 PSI (10.3 bar)

Part Number	Tube Size	Pipe Thread
HV104C-4-2 KIT	1/4"	1/8"

Kit includes 60PT-4 and 63PT-4 for assembly with plastic or nylon tubing. For complete kit, specify entire part number as shown below:

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
