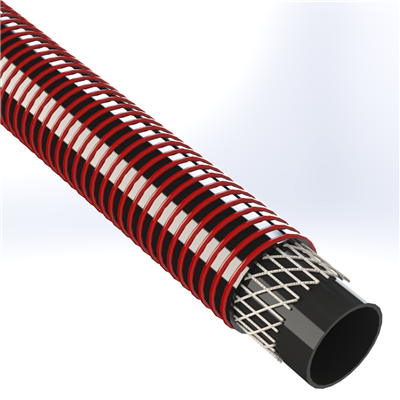

SPVC-TD150-3.0 by Texcel | SIGMA-TD150™ Series | Heavy-Duty Tank Drop Hose | 3" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black w/ Red Spiral Yarn

$37.87 - $3,156.00

$37.87

$33.66

$33.66 - $2,805.33

$33.66

SIGMA™ by Texcel
TD 150™ Series | 150psi Heavy-Duty Tank Drop Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: SPVC-TD150-3.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-TD150™ Series
Hose Color(s):	Black
Internal Diameter:	3in
Outer Diameter:	3.75in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	This lightweight drop hose is designed for higher working pressure applications where 150psi is desired. It’s suitable for the transfer of gasoline, ethanol blends (up to E15), and other petroleum products with an aromatic content of 40% or less in both drop and pump off service applications. Its rugged and abrasion-resistant construction allows for a low coefficient of friction for ease and maneuverability.	Construction:	Black, specially compounded NBR/PVC (up to 60% aromatics) – static-dissipating with a rigid PVC right-handed helix (red) and spiraled synthetic yarn
		Grounding:	Embedded tin coated copper wire
Safety Factor:	4:1	Temperature:	-40°F to +150°F (service temperature depends on actual application)
Branding:	TEXCEL® SIGMA-TD150™ - HEAVY DUTY TANK DROP HOSE 150 PSI W.P. -LOT	Compared To:	SP353
Sleeves:	SIGMA-TD150™ Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures	Features:	Designed for use at a higher 150psi working pressure

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-TD150-2.0	2"	2.73"	150 psi	29	6"	1.26 lbs
SPVC-TD150-3.0	3"	3.75"	150 psi	29	7"	1.55 lbs
SPVC-TD150-4.0	4"	4.88"	150 psi	29	9"	2.49 lbs
