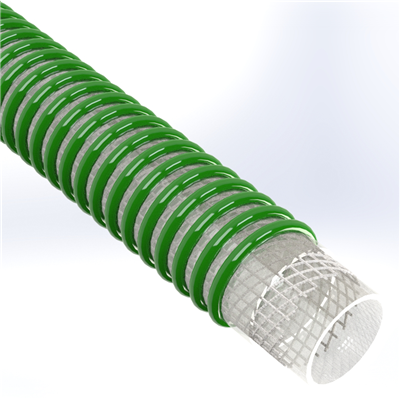

SPVC-TDG-4.0 by Texcel | SIGMA-TDG™ Series | Tank Drop Hose | 4" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Clear w/ Green Spiral Yarn

SPVC-TDG-4.0 by Texcel | SIGMA-TDG™ Series | Tank Drop Hose | 4" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Clear w/ Green Spiral Yarn

$30.98 - $2,581.50
$30.98
$27.54
$27.54 - $2,294.67
$27.54

SIGMA™ by Texcel
TDG™ Series | Tank Drop Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: SPVC-TDG-4.0 Texcel | X |
Brand: SIGMA
Series: SIGMA-TDG™ Series
Hose Color(s): Clear/Green
Internal Diameter: 4in
Outer Diameter: 4.73in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: High quality tank drop hose designed with specially compounded, non-permeable polyurethane, designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. Construction: Clear, specially compounded polyurethane with a rigid PVC right-handed helix (green) with spiraled synthetic yarn
Grounding: Embedded tin coated copper wire
Safety Factor: 4:1 Temperature: -40°F to +150°F (service temperature depends on actual application)
Branding: TEXCEL® SIGMA™-TDG - TANK DROP HOSE - LOT Compared To: TDH Tigerdrop Clear
Sleeves: SIGMA-TDG™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures Features: Compatible with ethanol up to E98 & biodiesel up to B100
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-TDG-3.0 3" 3.63" 65 psi 29 6" 1.21 lbs
SPVC-TDG-4.0 4" 4.73" 65 psi 29 8" 1.72 lbs
