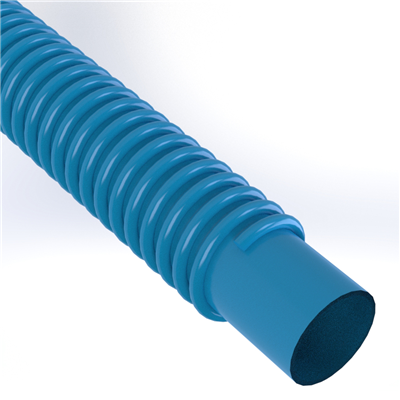

SPVC-URE-HD-4.0 by Texcel | SIGMA-URE HD BLUE™ Series | Heavy-Duty Polyurethane Material Handling Hose | 4" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Blue

$28.35 - $2,362.50

$28.35

$25.20

$25.20 - $2,100.00

$25.20

SIGMA by Texcel
URE HD BLUE™ Series | Heavy-Duty Polyurethane Material Handling Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: SPVC-URE-HD-4.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-URE HD BLUE™ Series
Hose Color(s):	Blue
Internal Diameter:	4in
Outer Diameter:	4.8in
Tubing Construction:	Polyurethane
Cover Construction:	PVC

Technical Data:
Description:	Premium-quality, material handling hose designed with a thick, heavy-duty, smooth polyurethane lining. Ideal for dry applications where high abrasion resistance is required, as well as flexibility in sub-zero temperatures	Construction:	Clear, thick, heavy-duty, smooth, polyurethane lining with a blue, HMW PVC, formulated for static dissipation and a rigid PVC, right-handed helix
Safety Factor:	3:1	Temperature:	-40°F to +158°F
Branding:	TEXCEL® SIGMA-URE-HD BLUE™ - HEAVY DUTY MATERIAL HANDLING HOSE -LOT	Compared To:	Ureflex-2
Safety Note:	Flexibility in sub-zero temperature Service temperature depends on actual application

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft
SPVC-URE-HD-2.0	2"	2.43"	40	29	4"	0.59 lbs
SPVC-URE-HD-3.0	3"	3.70"	40	29	6"	1.23 lbs
SPVC-URE-HD-4.0	4"	4.80"	35	29	10"	2.02 lbs
SPVC-URE-HD-5.0	5"	5.80"	35	28	15"	2.57 lbs
SPVC-URE-HD-6.0	6"	6.87"	30	28	18"	3.84 lbs
