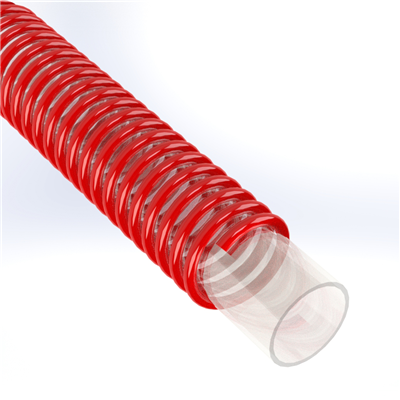

SPVC-VRH-4.0 by Texcel | SIGMA-VRH™ Series | Heavy-Duty Tank Drop Hose | 4" Hose ID | 11 PSI | 29 in/Hg Vacuum Rated | Clear w/ Red Spiral

SPVC-VRH-4.0 by Texcel | SIGMA-VRH™ Series | Heavy-Duty Tank Drop Hose | 4" Hose ID | 11 PSI | 29 in/Hg Vacuum Rated | Clear w/ Red Spiral

$22.21 - $1,851.00
$22.21
$19.74
$19.74 - $1,645.33
$19.74

SIGMA™ by Texcel
VRH™ Series | Heavy-Duty Red Vapor Recovery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: SPVC-VRH-4.0-100 Texcel | 100 |
Brand: SIGMA
Series: SIGMA-VRH™ Series
Hose Color(s): Clear/Red
Internal Diameter: 4in
Outer Diameter: 4.59in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: High quality vapor recovery hose for heavy-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. Construction: Clear, specially compounded polyurethane with a bright red, rigid PVC, right-handed helix
Grounding: Embedded tin coated copper wire Safety Factor: 4:1
Temperature: -40°F to +150°F (service temperature depends on actual application) Branding: TEXCEL® SIGMA™-VRH - HEAVY DUTY VAPOR RECOVERY HOSE -LOT
Compared To: Tigervapor HD Sleeves: SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-Coil™ (banding coils) are recommended to accurately follow assembly procedures
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-VRH-3.0 3" 3-37/64" 13 psi 29 4.5" 0.96 lbs
SPVC-VRH-4.0 4" 4-38/64" 11 psi 29 5.5" 1.28 lbs
