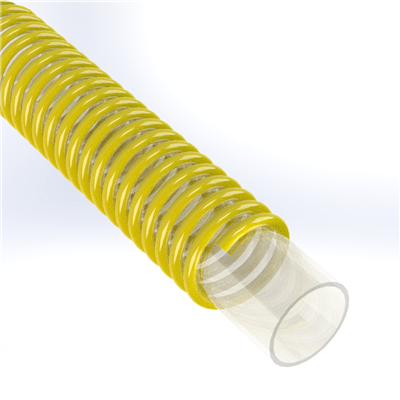

SPVC-VRM-2.0 by Texcel | SIGMA-VRM™ Series | Heavy-Duty Tank Drop Hose | 2" Hose ID | 17 PSI | 29 in/Hg Vacuum Rated | Clear w/ Yellow Spiral

$9.65 - $804.00

$9.65

$8.58

$8.58 - $714.67

$8.58

SIGMA™ by Texcel
VRM™ Series | Medium-Duty Yellow Vapor Recovery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: SPVC-VRM-2.0-100 Texcel \| 100 \|
Brand:	SIGMA
Series:	SIGMA-VRM™ Series
Hose Color(s):	Clear/Yellow
Internal Diameter:	2in
Outer Diameter:	3in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Special Properties:	Outer Helix Protection

Technical Data:
Description:	High quality vapor recovery hose for medium-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D 6751). Extremely flexible, even in sub-zero temperatures.	Construction:	Clear, specially compounded polyurethane with a yellow, rigid PVC, right-handed helix
Grounding:	Embedded tin coated copper wire	Safety Factor:	4:1
Temperature:	-40°F to +150°F (service temperature depends on actual application)	Branding:	TEXCEL® SIGMA-VRM™ - MEDIUM DUTY VAPOR RECOVERY HOSE -LOT
Compared To:	Tigervapor/ST-120-VP	Sleeves:	SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-VRM-2.0	2"	3"	17 psi	29	3"	0.52 lbs
SPVC-VRM-3.0	3"	3.50"	11 psi	29	3.5"	0.77 lbs
SPVC-VRM-4.0	4"	4.50"	9 psi	29	4.5"	1.11 lbs
