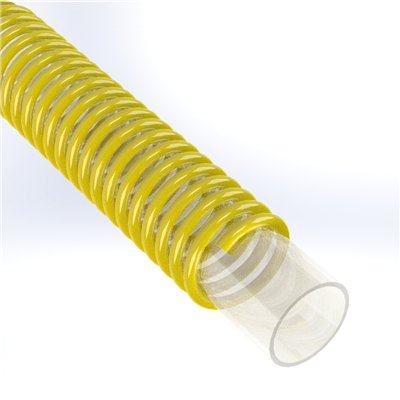

SPVC-VRM-3.0 by Texcel | SIGMA-VRM™ Series | Heavy-Duty Tank Drop Hose | 3" Hose ID | 11 PSI | 29 in/Hg Vacuum Rated | Clear w/ Yellow Spiral

SPVC-VRM-3.0 by Texcel | SIGMA-VRM™ Series | Heavy-Duty Tank Drop Hose | 3" Hose ID | 11 PSI | 29 in/Hg Vacuum Rated | Clear w/ Yellow Spiral

$14.19 - $1,182.00
$14.19
$12.61
$12.61 - $1,050.67
$12.61

SIGMA™ by Texcel
VRM™ Series | Medium-Duty Yellow Vapor Recovery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: SPVC-VRM-3.0-100 Texcel | 100 |
Brand: SIGMA
Series: SIGMA-VRM™ Series
Hose Color(s): Clear/Yellow
Internal Diameter: 3in
Outer Diameter: 3.50in
Tubing Construction: Polyurethane
Cover Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:
Description: High quality vapor recovery hose for medium-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D 6751). Extremely flexible, even in sub-zero temperatures. Construction: Clear, specially compounded polyurethane with a yellow, rigid PVC, right-handed helix
Grounding: Embedded tin coated copper wire Safety Factor: 4:1
Temperature: -40°F to +150°F (service temperature depends on actual application) Branding: TEXCEL® SIGMA-VRM™ - MEDIUM DUTY VAPOR RECOVERY HOSE -LOT
Compared To: Tigervapor/ST-120-VP Sleeves: SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
SPVC-VRM-2.0 2" 3" 17 psi 29 3" 0.52 lbs
SPVC-VRM-3.0 3" 3.50" 11 psi 29 3.5" 0.77 lbs
SPVC-VRM-4.0 4" 4.50" 9 psi 29 4.5" 1.11 lbs
