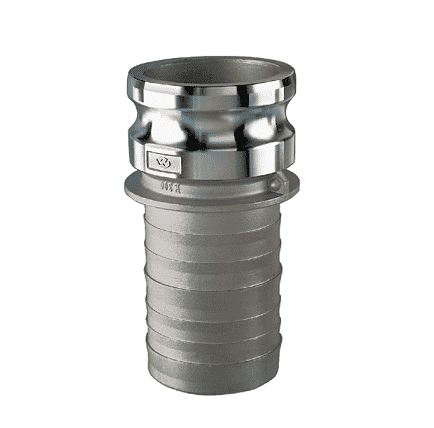

SS-E075 by Kuriyama | Quick-Acting Coupling | Part E | 3/4" Male Adapter x 3/4" Hose Shank | 316 Stainless Steel

SS-E075 by Kuriyama | Quick-Acting Coupling | Part E | 3/4" Male Adapter x 3/4" Hose Shank | 316 Stainless Steel

Save $1.53 Save $1.53
$10.17
$10.17 - $10.17
$10.17
$8.64
$8.64 - $8.64
$8.64

Kuriyama Couplings™ - Quick-Acting Couplings - Part E - Male Adapter x Hose Shank - 316 Stainless Steel

Specifications for Variant SKU: SS-E075 Kuriyama
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3/4in Male Cam & Groove, 3/4in Hose Barb
Material(s): 316 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-E050 1/2 x 1/2" 0.25 lbs
SS-E075 3/4" x 3/4" 0.36 lbs.
SS-E100 1" x 1" 0.60 lbs.
SS-E125 1-1/4" x 1-1/4" 0.95 lbs.
SS-E150 1-1/2" x 1-1/2" 1.22 lbs.
SS-E200 2" x 2" 1.98 lbs.
SS-E250 2-1/2" x 2-1/2" 2.64 lbs.
SS-E300 3" x 3" 3.90 lbs.
SS-E400 4" x 4" 6.38 lbs.
SS-E500 5" x 5" 9.10 lbs.
SS-E600 6" x 6" 13.49 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
