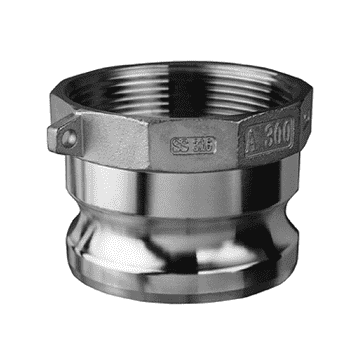

SS304-A300 by Kuriyama | Quick-Acting Coupling | Part A | 3" Male Adapter x 3" Female NPT | 304 Stainless Steel

SS304-A300 by Kuriyama | Quick-Acting Coupling | Part A | 3" Male Adapter x 3" Female NPT | 304 Stainless Steel

Save $8.56 Save $8.56
$45.01
$45.01 - $45.01
$45.01
$36.45
$36.45 - $36.45
$36.45

Kuriyama Couplings™ - Quick-Acting Couplings - Part A - Male Adapter x Female NPT - 304 Stainless Steel

Specifications for Variant SKU: SS304-A300 Kuriyama
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 3in Male Cam & Groove, 3in Female NPT
Material(s): 304 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 Stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS304-A050 1/2 x 1/2" 0.20 lbs
SS304-A075 3/4" x 3/4" 0.26 lbs.
SS304-A100 1" x 1" 0.34 lbs.
SS304-A125 1-1/4" x 1-1/4" 0.62 lbs.
SS304-A150 1-1/2" x 1-1/2" 0.80 lbs.
SS304-A200 2" x 2" 1.12 lbs.
SS304-A250 2-1/2" x 2-1/2" 1.76 lbs.
SS304-A300 3" x 3" 2.16 lbs.
SS304-A400 4" x 4" 2.88 lbs.
SS304-A500 5" x 5" 4.30 lbs.
SS304-A600 6" x 6" 6.00 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
