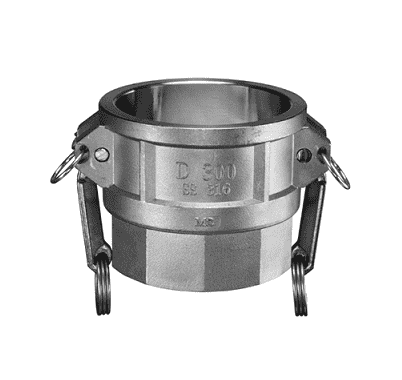

SS304-D600 by Kuriyama | Quick-Acting Coupling | Part D | 6" Female Coupler x 6" Female NPT | 304 Stainless Steel

SS304-D600 by Kuriyama | Quick-Acting Coupling | Part D | 6" Female Coupler x 6" Female NPT | 304 Stainless Steel

Save $47.94 Save $47.94
$252.37
$252.37 - $252.37
$252.37
$204.43
$204.43 - $204.43
$204.43

Kuriyama Couplings™ - Quick-Acting Couplings - Part D - Female Coupler x Female NPT - 304 Stainless

Specifications for Variant SKU: SS304-D600 Kuriyama
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 6in Female Cam & Groove, 6in Female NPT
Material(s): 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 304 Stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS304-D050 1/2 x 1/2" 0.40 lbs
SS304-D075 3/4" x 3/4" 0.52 lbs.
SS304-D100 1" x 1" 0.74 lbs.
SS304-D125 1-1/4" x 1-1/4" 1.47 lbs.
SS304-D150 1-1/2" x 1-1/2" 1.52 lbs.
SS304-D200 2" x 2" 2.16 lbs.
SS304-D250 2-1/2" x 2-1/2" 3.12 lbs.
SS304-D300 3" x 3" 3.82 lbs.
SS304-D400 4" x 4" 5.14 lbs.
SS304-D500 5" x 5" 8.00 lbs.
SS304-D600 6" x 6" 10.06 lbs.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
