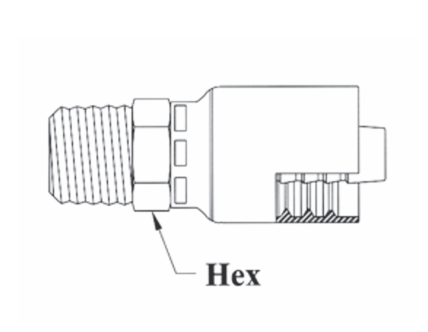

SSGC01-4x4 Couplamatic Grip Crimp Coupling - 316 Stainless Steel - NPTF - Male Solid - 1/4" Hose ID - 1/4-18 Thread Size

SSGC01-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/4-18 Thread Size NPTF Male Solid | Straight | 316 Stainless Steel

Save $3.10 Save $3.10
$27.87
$27.87 - $27.87
$27.87
$24.77
$24.77 - $24.77
$24.77

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel - NPTF - Male Solid
Specifications for Variant SKU: SSGC01-4x4 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Hex Size
SSGC01-4x4 1/4" 1/4" 1/4-18 9/16"
SSGC01-6x6 3/8" 3/8" 3/8-18 3/4"
SSGC01-8x8 1/2" 1/2" 1/2-14 7/8"
SSGC01-12x12 3/4" 3/4" 3/4-14 1-1/8"
SSGC01-16x16 1" 1" 1-11-1/2 1-3/8"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
