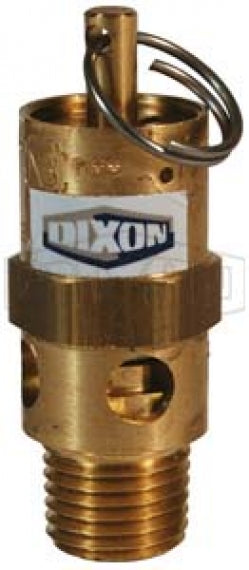

SV150 by Dixon Valve | Safety Pop-Off Valve | Standard | 1/4" Male NPT | 150 PSI Preset Pressure | 129 SCFM | Brass

Save $1.62

$14.59

$14.59 - $14.59

$14.59

$12.97

$12.97 - $12.97

$12.97

Dixon Valve & Coupling
Safety Pop-Off Valve | Standard

For use on compressors and in compressed air service.

Designed to protect un-fired pressure vessels from over-pressure.

Quantity

Specifications for Variant SKU: SV150 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s):	Brass

Materials:
Brass valves are supplied with a stainless steel ball. Stainless valves are all stainless construction with a soft seat.
Specifications:
Maximum temperature: 400°F (204°C)
Approvals:
ASME Code, National Board Certified CSA B51-03 certified

Part Number	Material	Male NPT	Preset Pressure PSI	SCFM
SV30	Brass	1/4"	30 PSI	35 SCFM
SV100	Brass	1/4"	100 PSI	89 SCFM
SV125	Brass	1/4"	125 PSI	109 SCFM
SV150	Brass	1/4"	150 PSI	129 SCFM
SV175	Brass	1/4"	175 PSI	149 SCFM
SV200	Brass	1/4"	200 PSI	168 SCFM

SV30SS	Stainless Steel	1/4"	30 PSI	35 SCFM
SV100SS	Stainless Steel	1/4"	100 PSI	92 SCFM
SV125SS	Stainless Steel	1/4"	125 PSI	112 SCFM
SV150SS	Stainless Steel	1/4"	150 PSI	132 SCFM
SV175SS	Stainless Steel	1/4"	175 PSI	153 SCFM
SV200SS	Stainless Steel	1/4"	200 PSI	173 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
