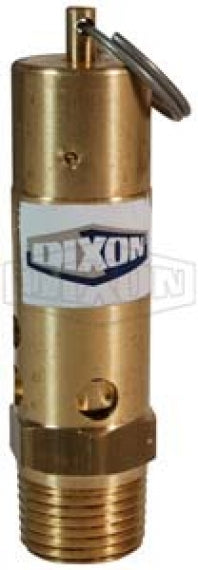

SV30HD by Dixon Valve | Safety Pop-Off Valve | Heavy Duty, High Capacity | Soft Seat | 1/2" Male NPT | 30 PSI Preset Pressure | 73 SCFM | Brass

Save $4.33

$38.97

$38.97 - $38.97

$38.97

$34.64

$34.64 - $34.64

$34.64

Dixon Valve & Coupling
Safety Pop-Off Valve | Heavy Duty, High Capacity

For use on compressors and in compressed air service.

Designed to protect un-fired pressure vessels from over-pressure.

Quantity

Specifications for Variant SKU: SV30HD Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Male NPT, Some Ends Match
Material(s):	Brass

Materials:
All-brass construction with stainless steel ball on a precision machined brass seat.
Specifications:
Maximum temperature: 400°F (204°C)
Approvals:
ASME Code, National Board Certified CSA B51-03 certified

Part Number	Male NPT	Preset Pressure PSI	SCFM
SV30HD*	1/2"	30 PSI	73 SCFM
SV100HD	1/2"	100 PSI	208 SCFM
SV125HD	1/2"	125 PSI	254 SCFM
SV150HD	1/2"	150 PSI	300 SCFM
SV175HD	1/2"	175 PSI	346 SCFM
SV200HD	1/2"	200 PSI	391 SCFM

* Constructed with soft seat

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
