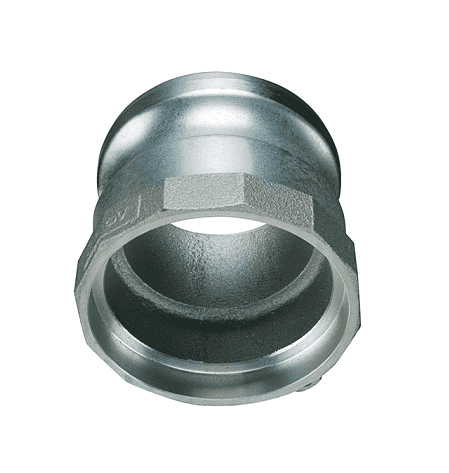

SW-ALA150 by Kuriyama | Quick-Acting Weld Coupling | Part A | 1-1/2" Male Adapter | Aluminum

SW-ALA150 by Kuriyama | Quick-Acting Weld Coupling | Part A | 1-1/2" Male Adapter | Aluminum

Save $1.24 Save $1.24
$6.59
$6.59 - $6.59
$6.59
$5.35
$5.35 - $5.35
$5.35

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part A - Male Adapter x Socket Weld - Aluminum

Specifications for Variant SKU: SW-ALA150 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s): Aluminum
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • SW Items are Designed for Socket Weld to Schedule 40 Pipe.
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SW-ALA150 1-1/2" x 1-1/2" 0.37 lbs
SW-ALA200 2" x 2" 0.45 lbs
SW-ALA250 2-1/2" x 2-1/2" 0.65 lbs
SW-ALA300 3" x 3" 0.77 lbs
SW-ALA400 4" x 4" 1.41 lbs
SW-ALA500 5" x 5" 1.7 lbs
SW-ALA600 6" x 6" 2.08 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
