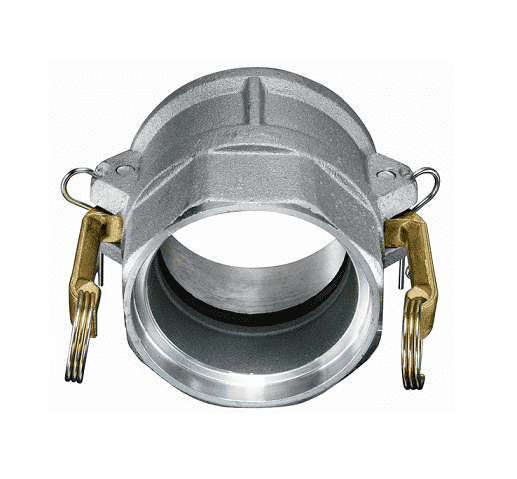

SW-ALD250 by Kuriyama | Quick-Acting Weld Coupling | Part D | 2-1/2" Female Coupler | Aluminum

SW-ALD250 by Kuriyama | Quick-Acting Weld Coupling | Part D | 2-1/2" Female Coupler | Aluminum

Save $14.19 Save $14.19
$49.66
$49.66 - $49.66
$49.66
$35.47
$35.47 - $35.47
$35.47

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part D - Female Coupler x Socket Weld - Aluminum

Specifications for Variant SKU: SW-ALD250 Kuriyama
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Weld End
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • SW Items are Designed for Socket Weld to Schedule 40 Pipe
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains.
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SW-ALD150 1-1/2" x 1-1/2" 0.81 lbs
SW-ALD200 2" x 2" 0.99 lbs
SW-ALD250 2-1/2" x 2-1/2" 1.27 lbs
SW-ALD300 3" x 3" 1.69 lbs
SW-ALD400 4" x 4" 2.91 lbs
SW-ALD500 5" x 5" 4.56 lbs
SW-ALD600 6" x 6" 5.28 lbs
