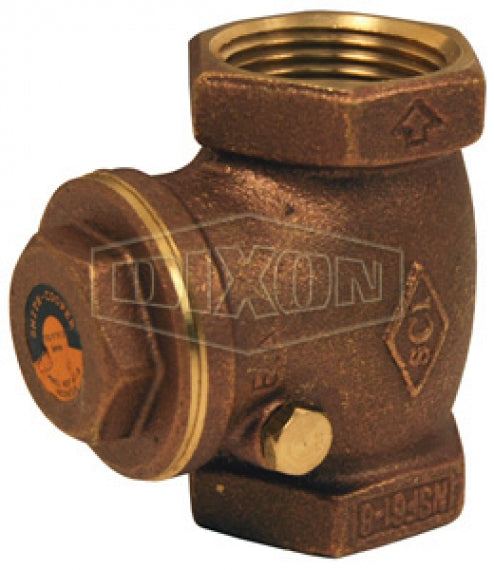

SWCV100 by Dixon Valve | Swing Check Valve | 1" Female NPT x 1" Female NPT | Brass

Name: SWCV100 by Dixon Valve | Swing Check Valve | 1" Female NPT x 1" Female NPT | Brass
Brand: Dixon
SKU: SWCV100 Dixon
Price: 25.2 USD
Availability: InStock

$25.17 - $25.17

$25.17

$25.20

$25.20 - $25.20

$25.20

Dixon Valve & Coupling
Swing Check Valve | Brass

For use in plumbing and liquid piping systems to prevent back flow.

For horizontal or vertical use.

Quantity

Specifications for Variant SKU: SWCV100 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Brass

Features:
Full flow performance with a minimum of turbulence or pressure loss. A positive seating disc allows flow only in one direction and a screw-in cap provides easy access for periodic cleaning.
Materials:
Brass disc.
Specifications:
Pressure rating: 200 PSI WOG Temperature range: -20° to 150°F (-29°C to 66°C)

Part Number	Female NPT x Female NPT
SWCV50	1/2" x 1/2"
SWCV75	3/4" x 3/4"
SWCV100	1" x 1"
SWCV125	1-1/4" x 1-1/4"
SWCV150	1-1/2" x 1-1/2"
SWCV200	2" x 2"
SWCV300	3" x 3"
SWCV400	4" x 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
